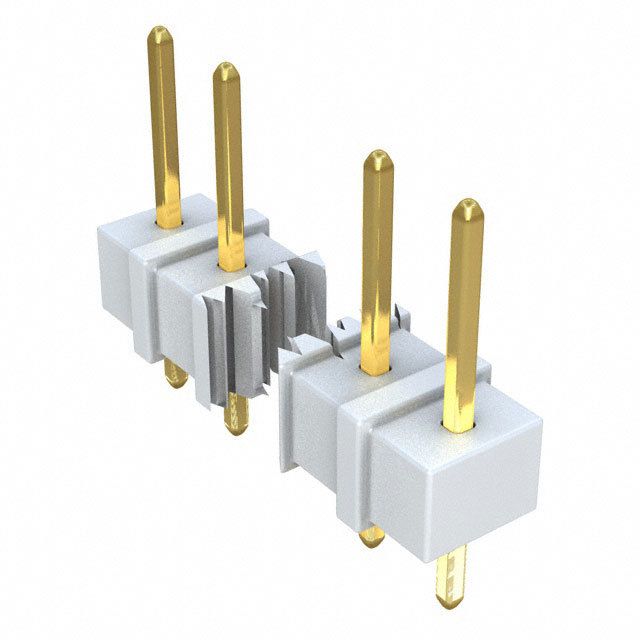

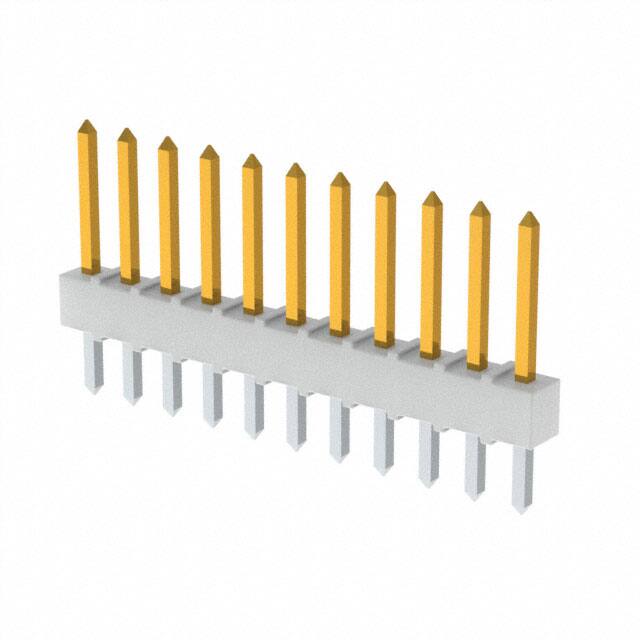

2.54毫米（ .100 ）间距KK®线对板头，单列，立式，电路11 ，PA聚酰胺尼龙，金（Au ）镀层 2.54mm .100 Pitch KK® Wire-to-Board Header, Single Row, Vertical, 11 Circuits, PA Polyamide Nylon, Gold Au Plating
Connector Header Through Hole 11 position 0.100" 2.54mm
得捷:
CONN HEADER VERT 11POS 2.54MM
贸泽:
Molex KK 100 Hdr Flat Vert 20 Au 11Ckt
艾睿:
Easily mount this unshrouded 0022102111 header connector from Molex onto your PCB project to support a variety of physical configuration options. This HDR connector&s;s 11 contacts that are made out of brass and plated with gold over nickel. Its pitch is 2.54 mm. It has a straight body orientation. It has a maximum voltage rating of 250 V. It has a header type gender. This is a 1-row connector. This device has a maximum current rating of 4 A/contact. 0022102111 is housed in white nylon. This product is 27.69 mm long, 10.79 mm tall and 2.34 mm deep. It uses the solder termination method. This connector has an operating temperature of -40 to 80 °C.
安富利:
Conn Unshrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Bulk
