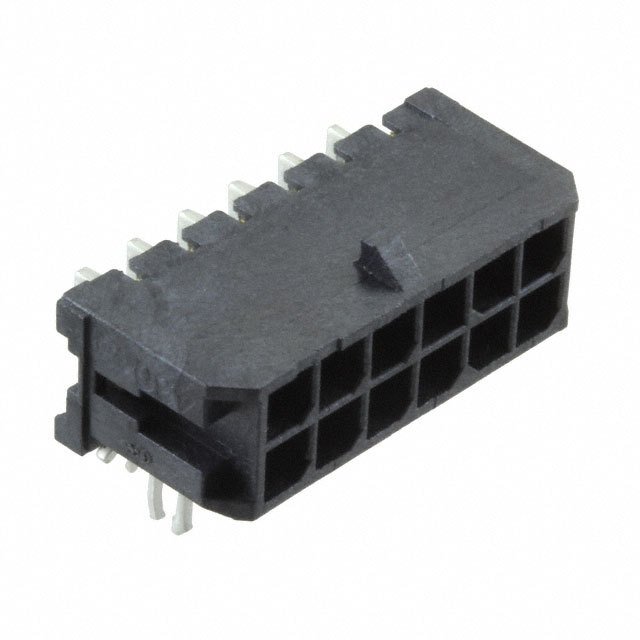

0430451223

3.00毫米（ 0.118 “ ）间距微飞度3.0 ™接头，表面安装，双排，直角，带压入金属固定夹，12个电路 3.00mm .118" Pitch Micro-Fit 3.0™ Header, Surface Mount Compatible, Dual Row, Right Angle, with Press-fit Metal Retention Clip, 12 Circuits

Connector Header Through Hole, Right Angle 12 position 0.118" 3.00mm

得捷:
MICROFIT 3.0 RA PTH W/CLIP 30AU

艾睿:
Support physical configuration options for jumper posts by mounting this wire to board 0430451223 header connector from Molex. This HDR connector&s;s 12 contacts that are made out of brass alloy and plated with gold over nickel. It has a right angle body orientation. This is a 2-row connector. Its pitch is 3 mm. It has a maximum voltage rating of 600 V. It has a header type gender. This device has a maximum current rating of 5 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. 0430451223 is housed in black liquid crystal polymer. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method. This product is 22.15 mm long, 8.77 mm tall and 12.2 mm deep.

安富利:
Conn Wire to Board HDR 12 POS 3mm Solder RA Thru-Hole Tray
