0015247060

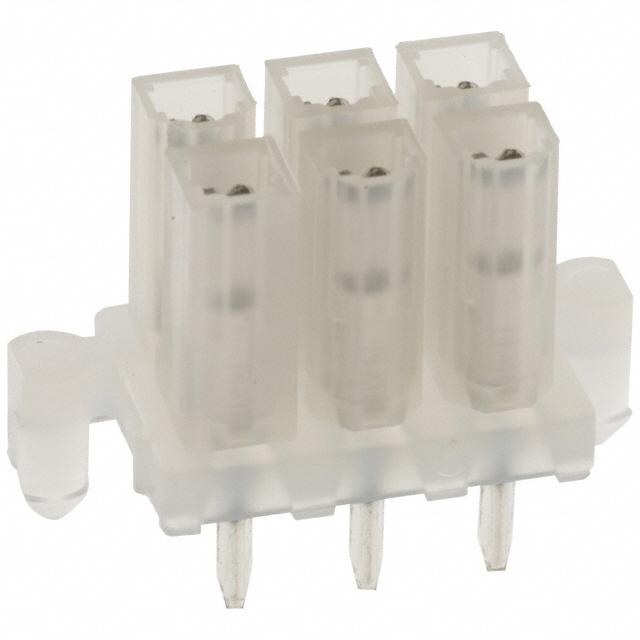

Conn Power RCP 6POS 4.2mm Solder ST Thru-Hole 6 Terminal 1Port Mini-Fit® BMI Tray

Do you need to connect a power supply to a circuit? Then this power connector from is perfect for you! This RCP connector"s 6 contacts that are made out of brass alloy and plated with tin over nickel. It has a straight body orientation. This connector has a single port. Its pitch is 4.2 mm. It has a maximum voltage rating of 600 VDC|600VAC. It has a receptacle type gender. 0015247060 is housed in nylon 6/6. This device has a maximum current rating of 9 A/contact. This component will be shipped in tray format. Its 6 terminals use the solder termination method. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C. This product is 9.6 mm deep.
