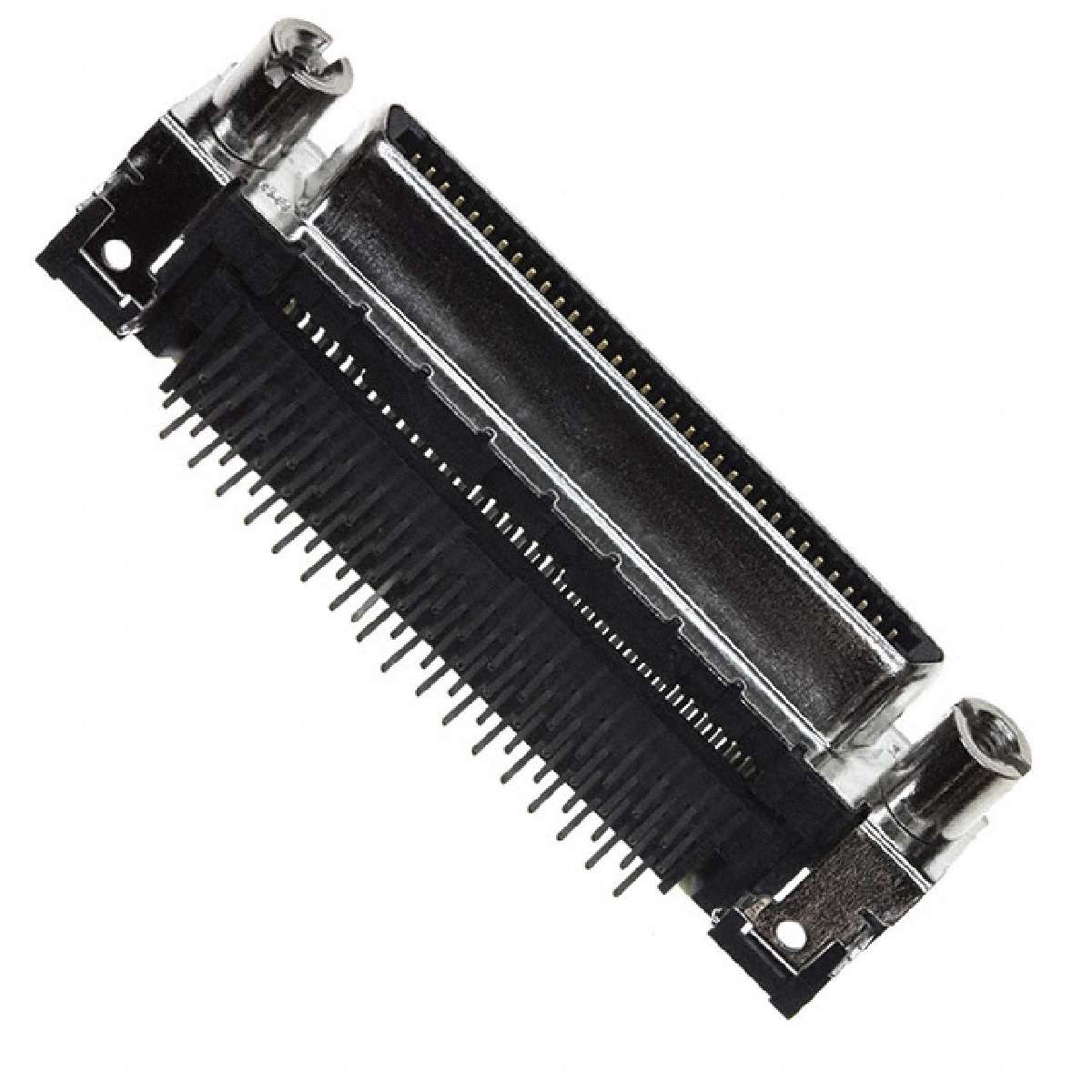

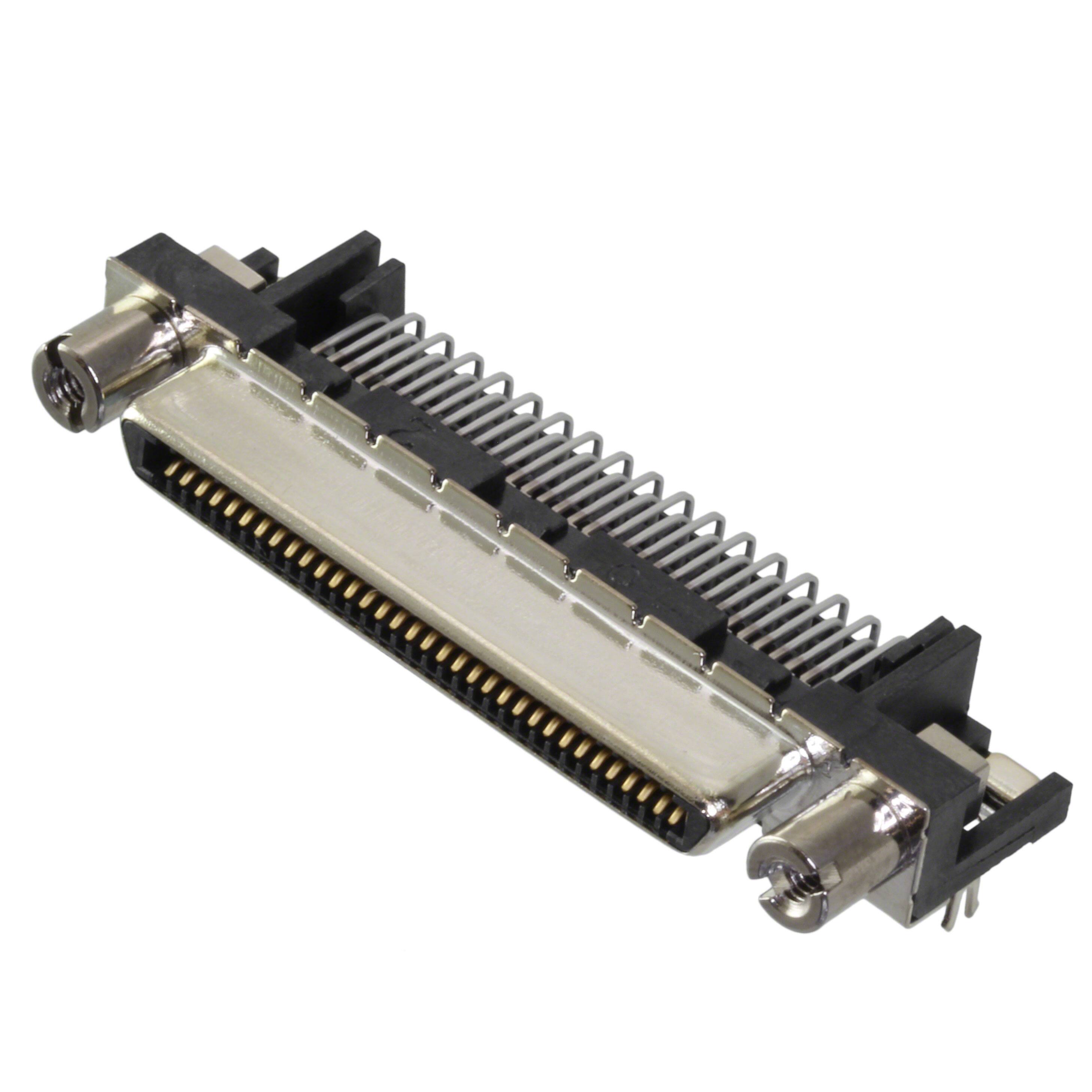

0.80毫米（ .031 “ ）间距超+ ™ VHDCI插座，直角，或withoutEnhanced盾， 68电路 0.80mm .031" Pitch Ultra+™ VHDCI Receptacle, Right Angle, with or withoutEnhanced Shield, 68 Circuits
68 位置 插座 SCSI+，VHDCI 通孔，直角 焊接
得捷:
CONN VHDCI RCPT 68POS R/A SOLDER
艾睿:

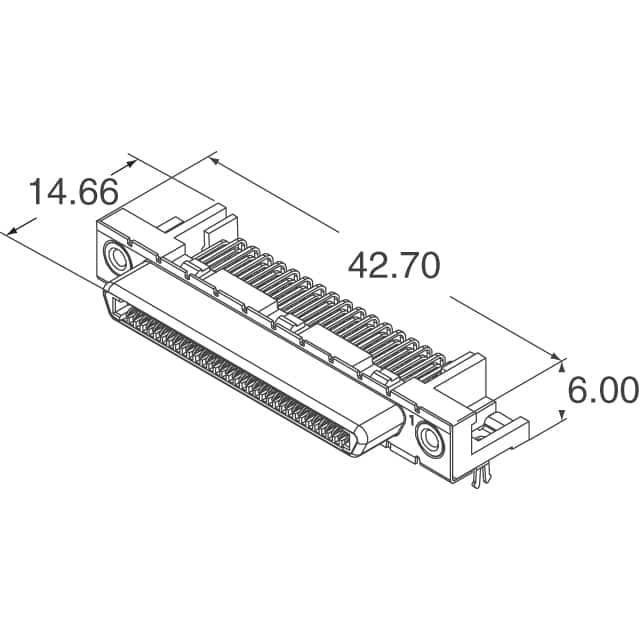

Reduce the possibility of accidentally shorting pins when using a printed circuit board with this ieee 1386 0714300009 header connector from Molex. This RCP connector has 68 contacts that are plated with gold over nickel. This is a 2-row connector. It has a right angle body orientation. Its pitch is 1.6 mm. It has a receptacle type gender. It has a maximum voltage rating of 30 VDC|30VAC. This device has a maximum current rating of 0.5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 0714300009 is housed in black thermoplastic. This connector has an operating temperature of -55 to 85 °C. It uses the solder termination method. This product is 42.7 mm long, 6.28 mm tall and 14.65 mm deep.
安富利:
Conn IEEE 1386 RCP 68 POS 1.6mm Solder RA Thru-Hole Tube
