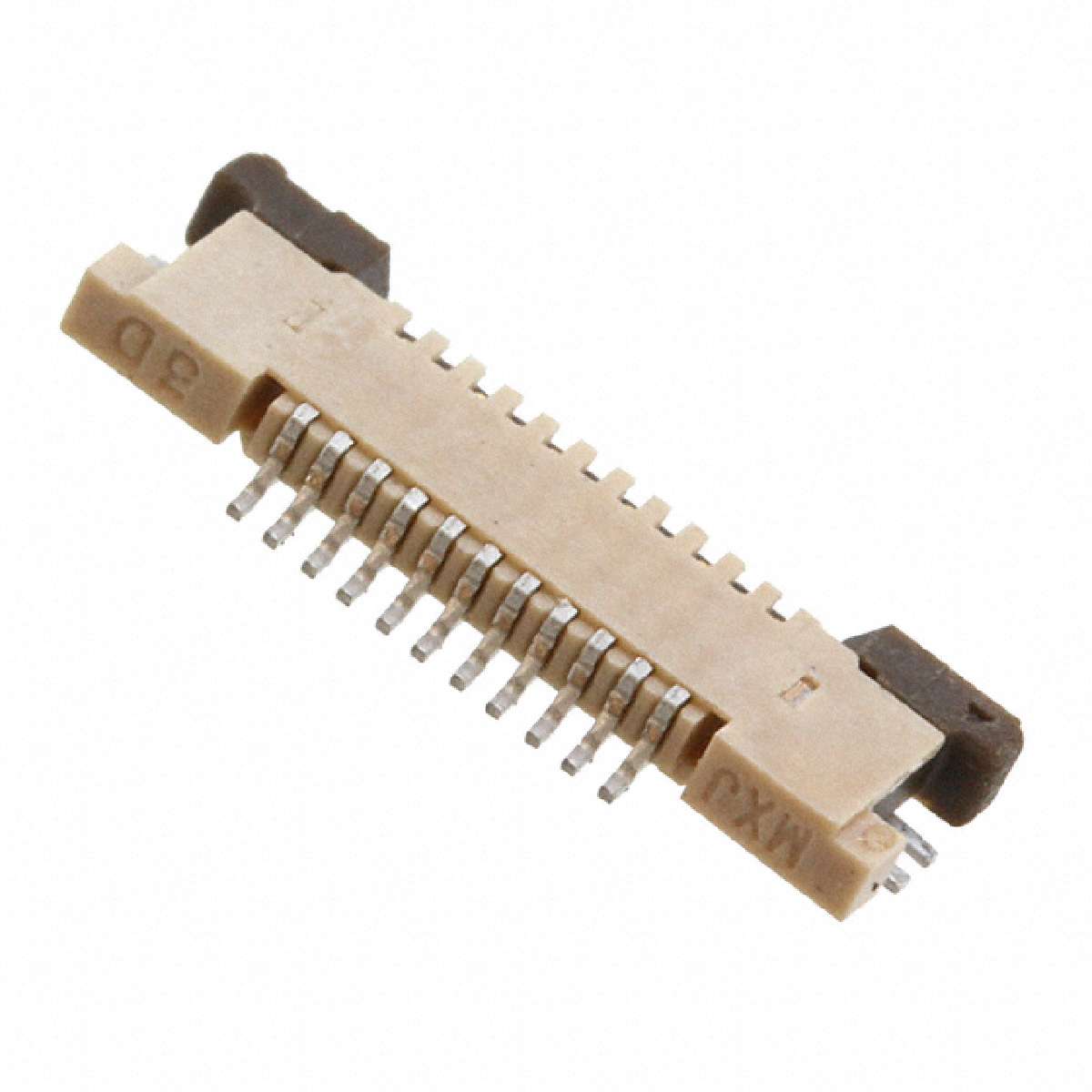

0.50毫米（ 0.020 “ ）间距FFC / FPC连接器， 1.20毫米（ 0.047 ” ）的高度，直角， SMT ， ZIF ，顶部触点类型，11个电路，金（Au ）触点电镀 0.50mm .020" Pitch FFC/FPC Connector, 1.20mm .047" Height, Right Angle, SMT, ZIF, Top Contact Style, 11 Circuits, Gold Au Contact Plating
11 Position FFC, FPC Connector Contacts, Top 0.020" 0.50mm Surface Mount, Right Angle
得捷:
CONN FFC FPC TOP 11POS 0.5MM R/A
艾睿:
The fpc connector 0545501171 flexible flat cable from Molex can help you save valuable space by running multiple electrical channels over a flat, ribbon-like cable. Its pitch is 0.5 mm. It has a maximum voltage rating of 50 V. This is a 1-row connector. It has a right angle body orientation. This socket type connector&s;s 11 contacts that are made out of phosphor bronze and plated with gold over nickel. This device has a maximum current rating of 0.5 A/contact. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This flexible flat cable has an operating temperature of -20 to 85 °C. It uses the solder termination method. This product is 10.7 mm long, 1.2 mm tall and 3.85 mm deep. 0545501171 is housed in natural liquid crystal polymer.
