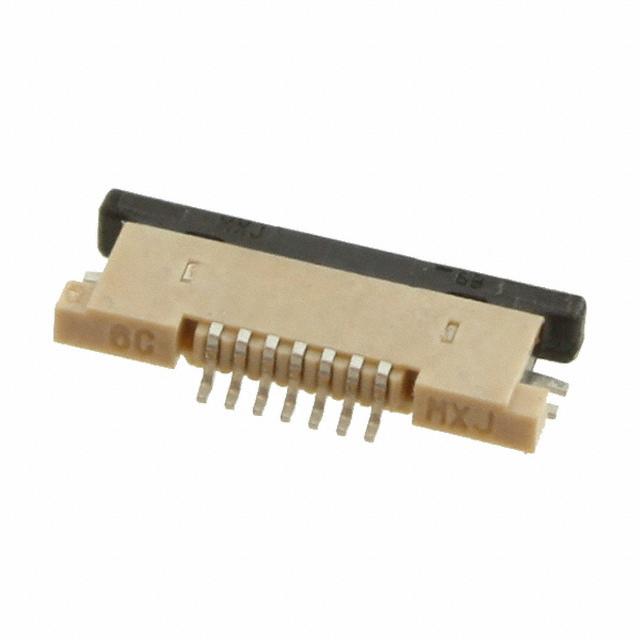

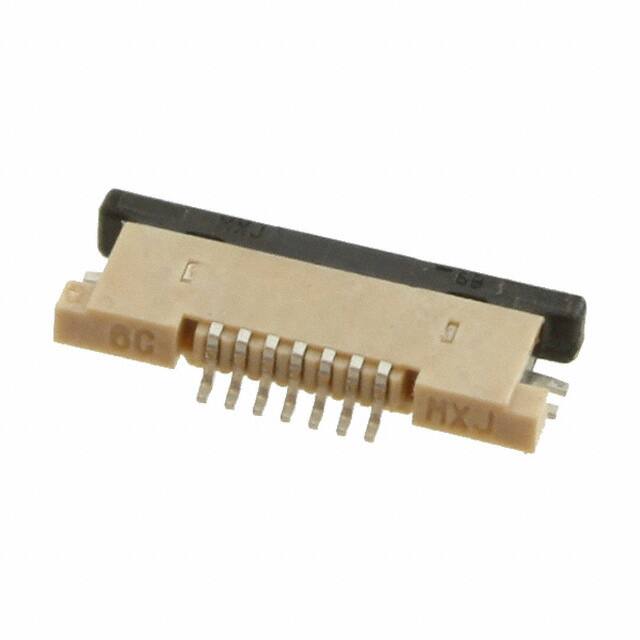

0.50毫米（ 0.020 “ ）间距FFC / FPC连接器， 1.20毫米（ 0.047 ” ）的高度，直角， SMTZIF ，底部触点类型， 7电路，无铅，金（Au ）镀层 0.50mm .020" Pitch FFC/FPC Connector, 1.20mm .047" Height, Right Angle, SMTZIF, Bottom Contact Style, 7 Circuits, Lead-free, Gold Au Plating
7 Position FFC, FPC Connector Contacts, Bottom 0.020" 0.50mm Surface Mount, Right Angle
得捷:
CONN FFC BOTTOM 7POS 0.50MM R/A
艾睿:
Whether your needs are small or large, this ffc/fpc connector 0545480771 flexible flat cable from Molex provides an organized, space-saving alternative to traditional spherical wire. It has a maximum voltage rating of 50 V. It has a right angle body orientation. Its pitch is 0.5 mm. This is a 1-row connector. This socket type connector&s;s 7 contacts that are made out of phosphor bronze and plated with gold over nickel. This device has a maximum current rating of 0.5 A/contact. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. 0545480771 is housed in liquid crystal polymer. This product is 8.7 mm long, 1.2 mm tall and 3.85 mm deep. This flexible flat cable has an operating temperature of -20 to 85 °C. It uses the solder termination method.
