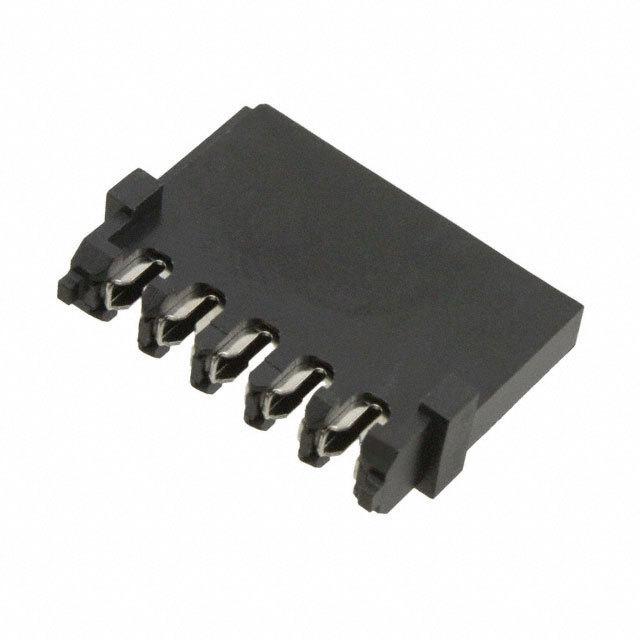

3.81毫米（ .150 “ ）间距串行ATA IDT电源插座，金（Au ）的Flash ， 18AWG ，无锁，有凹凸，无铅 3.81mm .150" Pitch Serial ATA IDT Power Receptacle, Gold Au Flash, 18AWG, without Latch, with Bump, Lead free
15 位置 SATA 插座 IDC 自由悬挂
得捷:
CONN SATA RCPT 15POS IDC STR
艾睿:
Devices such as printers and scanners that run the Small Computer System Interface standards and protocols will require this sata 0679260011 SCSI connector from 0679260011 in order to interface with each other. This F connector&s;s 5 contacts that are made out of copper alloy and plated with gold over nickel. It has a straight body orientation. It has a maximum voltage rating of 15 V. This connector has a single port. It has a female type gender. Its pitch is 3.81 mm. This device has a maximum current rating of 1.5 A/contact. 0679260011 is housed in plastic. The component will be shipped in tray format. This product is 23.12 mm long, 8.4 mm tall and 18.1 mm deep. This SCSI connector has a minimum operating temperature of -35 °C and a maximum of 85 °C. Its 5 terminals use the idt termination method.
安富利:
Conn SATA F 5 POS 3.81mm IDT ST Cable Mount 5 Terminal 1 Port Tray
Chip1Stop:
Conn SATA F 5 POS 3.81mm IDT ST Cable Mount 5 Terminal 1 Port Tray
