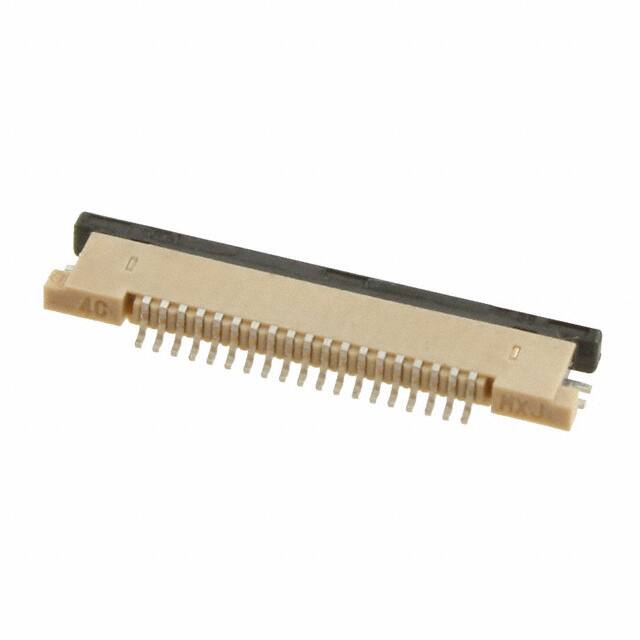

0.50毫米（ 0.020 “ ）间距FFC / FPC连接器， 1.20毫米（ 0.047 ” ）的高度，直角， SMTZIF ，底部触点类型， 19电路，无铅，金（Au ）镀层 0.50mm .020" Pitch FFC/FPC Connector, 1.20mm .047" Height, Right Angle, SMTZIF, Bottom Contact Style, 19 Circuits, Lead-free, Gold Au Plating
19 位置 FFC，FPC 触点，底部 0.020"（0.50mm） 表面贴装，直角
得捷:
CONN FFC BOTTOM 19POS 0.5MM R/A
艾睿:
As an alternative to traditional spherical wiring, the ffc/fpc connector 0545481971 flexible flat cable from Molex can run multiple electrical lines over a flat, ribbon-like cable, essentially saving valuable space. Its pitch is 0.5 mm. This is a 1-row connector. This socket type connector&s;s 19 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 50 V. It has a right angle body orientation. This device has a maximum current rating of 0.5 A/contact. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. 0545481971 is housed in liquid crystal polymer. It uses the solder termination method. This flexible flat cable has an operating temperature of -20 to 85 °C. This product is 14.7 mm long, 1.2 mm tall and 3.85 mm deep.
