A1120/1/2/3/5 Chopper Stabilised Hall Effect Sensor Switches, Allegro Microsystems
The Allegro Microsystems A1120, A1121, A1122, A1123, and A1125 Hall-effect, unipolar switches are temperature-stable and stress-resistant sensor ICs. High temperature performance is made possible through dynamic offset cancellation, which reduces the residual offset voltage normally caused by device over-molding, temperature dependencies, and thermal stress.
They include a voltage regulator, Hall-voltage generator, small-signal amplifier, chopper stabilisation, Schmitt trigger, and a short circuit protected open-drain output to sink up to 25 mA. The voltage regulator enables supply voltages of 3 V to 24 V.
For the A1120, A1121, A1122, and A1123, a south pole turns on the output and removal turns off the output. For the A1125, it is reversed and the south pole turns off the A1125 output.
Unipolar switchpoints
Resistant to physical stress
Superior temperature stability
Output short circuit protection
Operation from unregulated supply
### 霍尔效应，Allegro Microsystems
电源电压DC 3.00V min
输出电流 25 mA
供电电流 4 MA
针脚数 3
输出电流Max 25 mA
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 3V ~ 24V
电源电压Max 24 V
电源电压Min 3 V

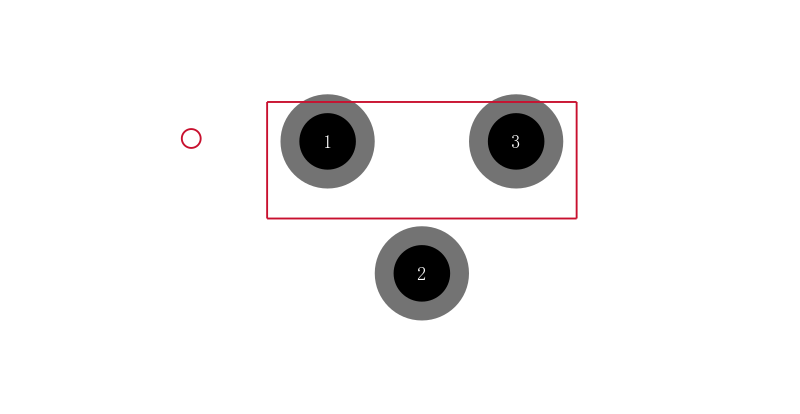

安装方式 Through Hole
引脚数 3

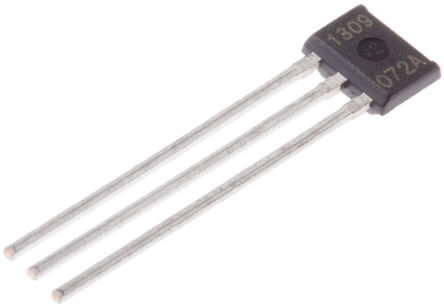

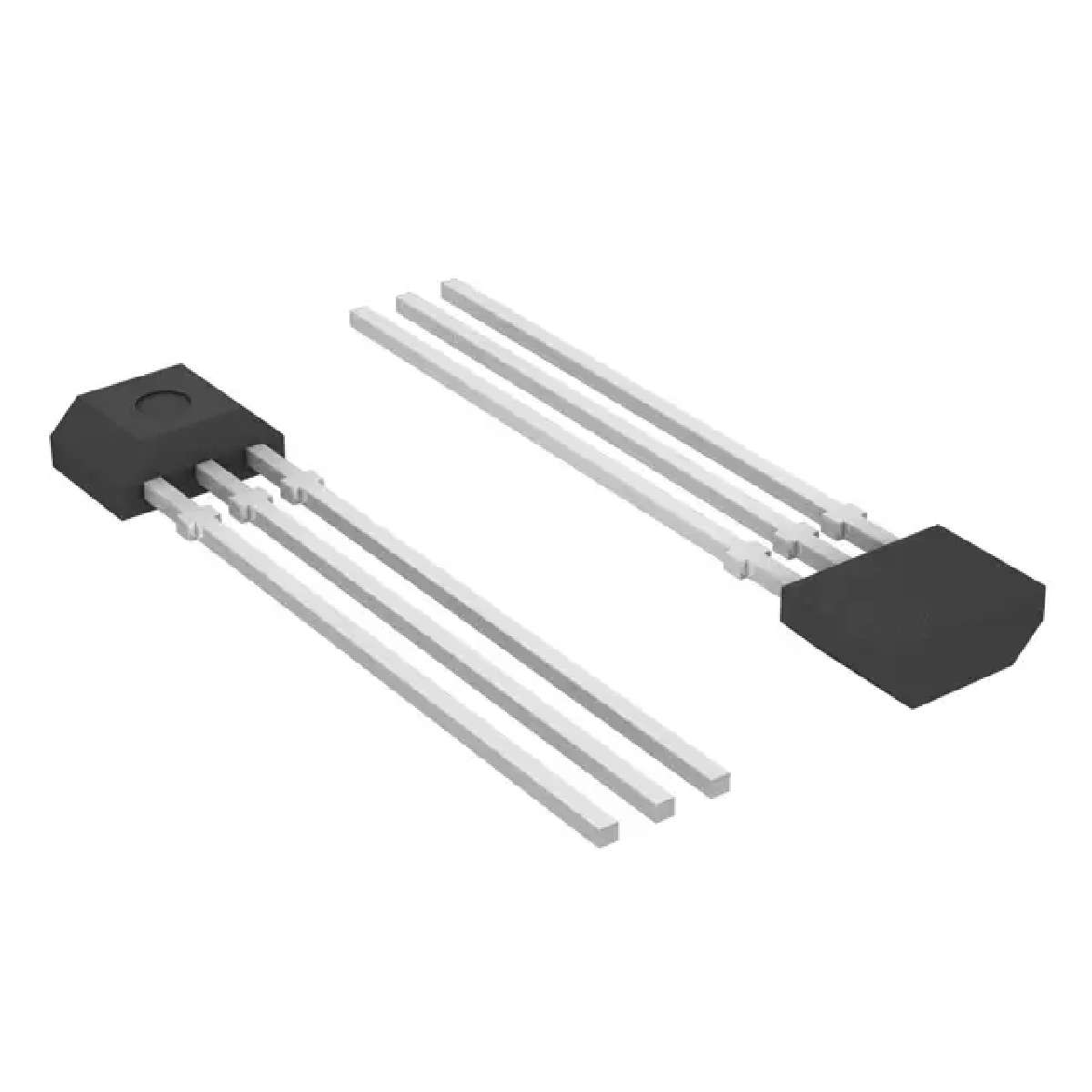

封装 SIP-3
长度 4.09 mm
宽度 1.52 mm
高度 3.02 mm
封装 SIP-3
工作温度 -40℃ ~ 150℃ TA
产品生命周期 Active
包装方式 Bulk
制造应用 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
