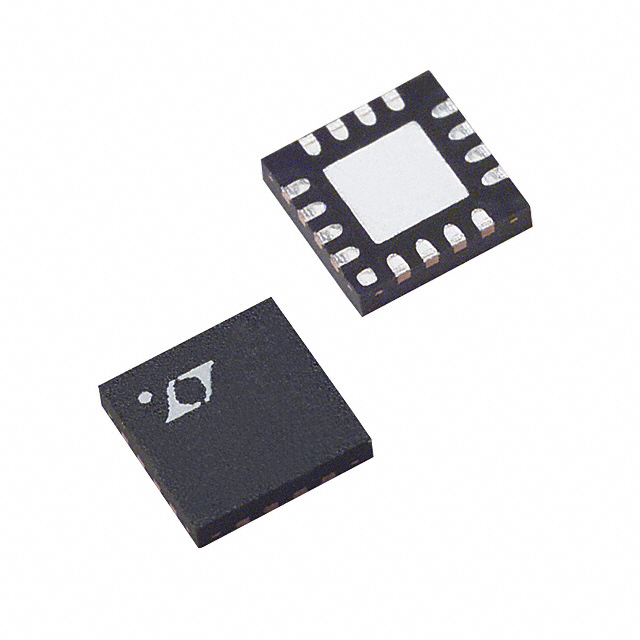

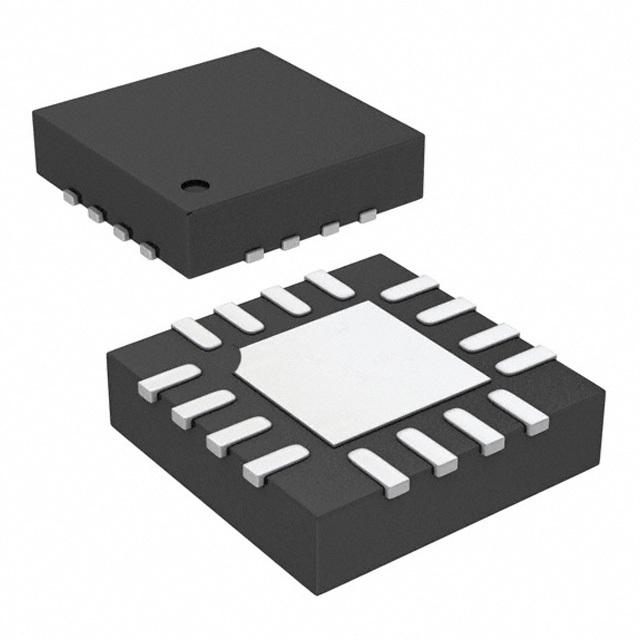

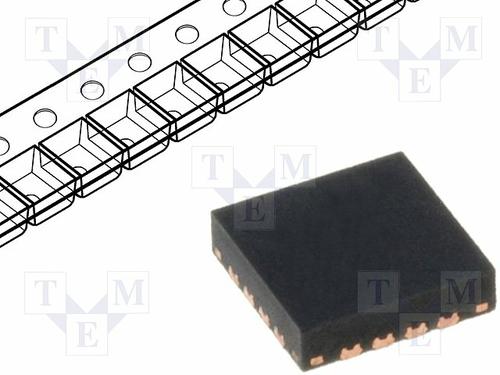

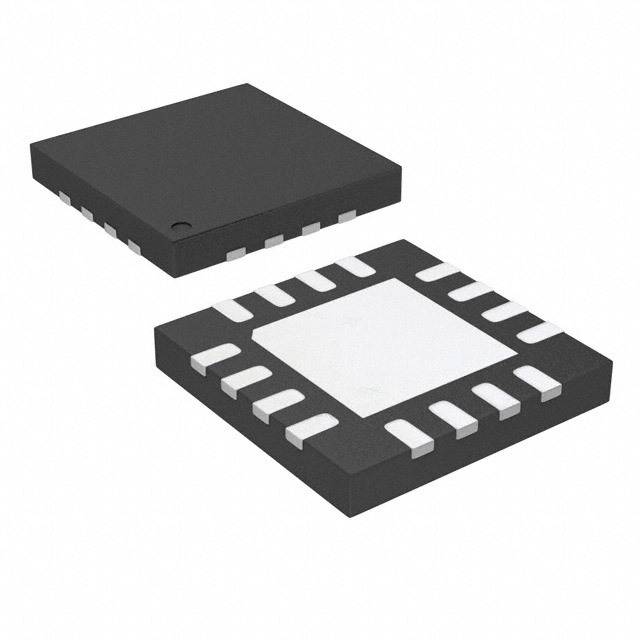

DC-DC converter; step down; Uin:4÷38V; Uout:0.8÷5.5V; 25A; QFN16
Effectively change the level of your DC voltage with the synchronous step down DC voltage controller from . This DC voltage controller has 2 outputs. With an output that has a voltage of 0.8 to 5.5 V, this is power management at its best. This DC voltage controller has an input voltage of 4 to 38 V. This part offers a switching frequency of 790 kHz in order to work properly. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.
输出接口数 1
输出电压 0.8V ~ 5.5V
输出电流 25 A
开关频率 250kHz ~ 750kHz
占空比 99 %
输入电压Max 38 V
输入电压Min 4 V
最大占空比 99 %
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4V ~ 38V
输入电压 4.38 V
安装方式 Surface Mount
引脚数 16
封装 WFQFN-16
封装 WFQFN-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3851EUD#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3851EUD#PBF 凌力尔特 | 类似代替 | LTC3851EUD#TRPBF和LTC3851EUD#PBF的区别 |
