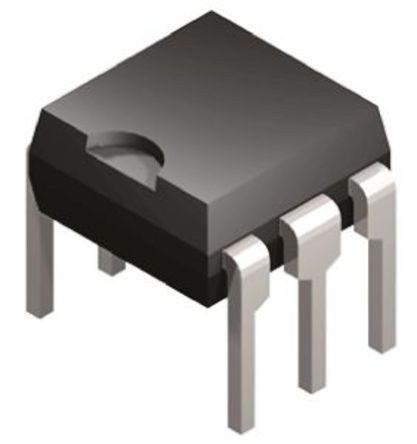

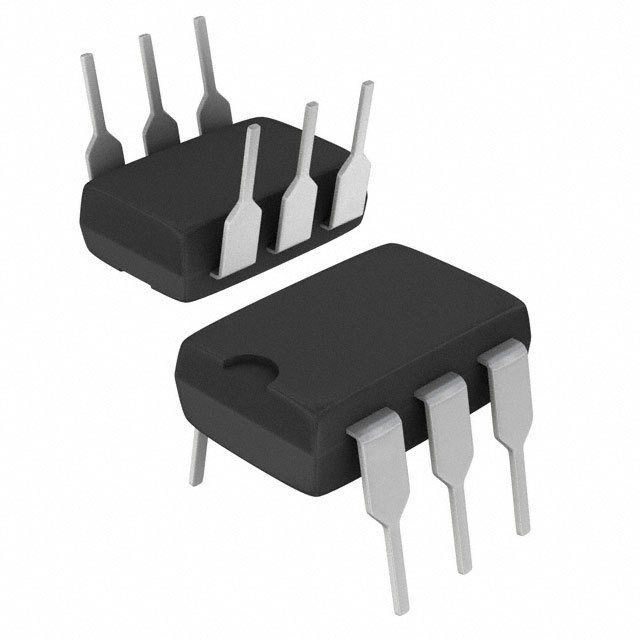

LH1525AT

VISHAY  LH1525AT  继电器, MOSFET, 400 V, 125 mA, 36R, SPST常开

The is a through-hole Solid State Relay constructed using a GaAIAs LED for actuation control and an integrated monolithic die for the switch output. It has SPST normally-open switches 1-form-A that can replace electromechanical relay in many applications. This relay requires a minimal amount of LED drive current to operate, making it ideal for battery powered and power consumption sensitive applications. The die is fabricated in a high-voltage dielectrically isolated technology, comprised of a photodiode array, switch-control circuitry and MOSFET switches. In addition the relay employs current-limiting circuitry, enabling it to pass lightning surge testing as per ANSI/TIA-968-B and other regulatory surge requirements when overvoltage protection is provided. The relay can be configured for AC/DC or DC-only operation.

.

Extremely low operating current

.

High speed operation

.

Current limit protection

.

High surge capability

.

Clean bounce free switching

.

Low power consumption
