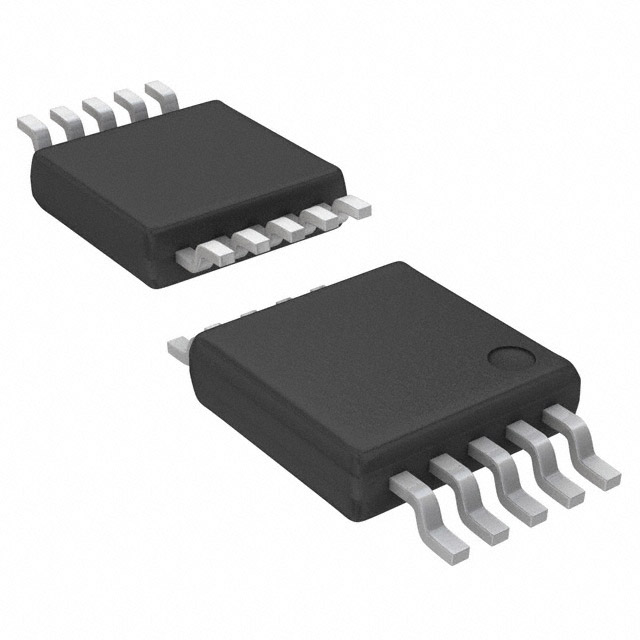

MAX4719EUB+

模拟开关, 2 放大器, SPDT, 20 ohm, 1.8V 至 5.5V, µMAX, 10 引脚

The from Products is a 20 ohm, 300MHz bandwidth, dual SPDT analogue switch in 10 pin µMAX package. The switch offers break before make switching 1ns with tON <80ns and tOFF <40ns at +2.7V. The digital logic inputs are +1.8V logic compatible with a +2.7V to +3.6V supply. It is ideally used at cell phones, battery operated equipment, audio/video-signal routing, low voltage data acquisition systems, sample and hold circuits and PDAs.

.

Supply voltage of 1.8V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

Low 15pF on-channel capacitance

.

20 ohm RON max switch, 0.4ohm max RON match 3V and 1.2ohm max RON flatness 3V

.

Rail to rail signal handling

.

High off-isolation of -55dB 10MHz

.

Low crosstalk of -80dB 10MHz

.

Low distortion of 0.03%

.

1.8V CMOS logic compatible

.

<0.5nA leakage current at +25°C, -3dB bandwidth of >300MHz
