PD85015-E

RF功率晶体管， LDMOST塑料系列N沟道增强模式横向的MOSFET RF power transistor, LdmoST plastic family N-channel enhancement-mode lateral MOSFETs

Description

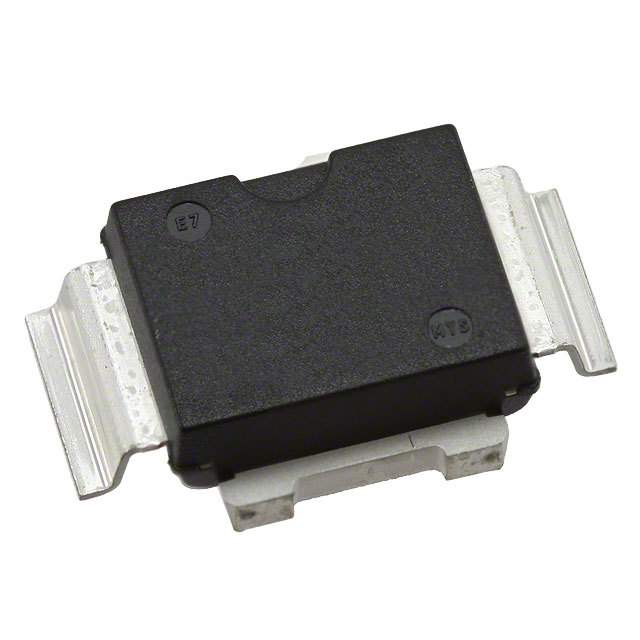

The is a common source N-channel, enhancement-mode lateral field-effect RF power transistor. It is designed for high gain, broadband commercial and industrial applications. It operates at 13.6 V in common source mode at frequencies of up to 1 GHz. PD85015-E boasts the excellent gain, linearity and reliability of ST’s latest LDMOS technology mounted in the first true SMD plastic RF power package, PowerSO-10RF. PD85015-E’s superior linearity performance makes it an ideal solution for car mobile radio. The PowerSO-10 plastic package, designed to offer high reliability, is the first ST JEDEC approved, high power SMD package. It has been specially optimized for RF needs and offers excellent RF performances and ease of assembly. Mounting recommendations are available in www.st.com/rf search for AN1294

Features

■ Excellent thermal stability

■ Common source configuration

■ POUT = 15 W with 16 dB gain @ 870 MHz / 13.6 V

■ Plastic package

■ ESD protection

■ In compliance with the 2002/95/EC european directive
