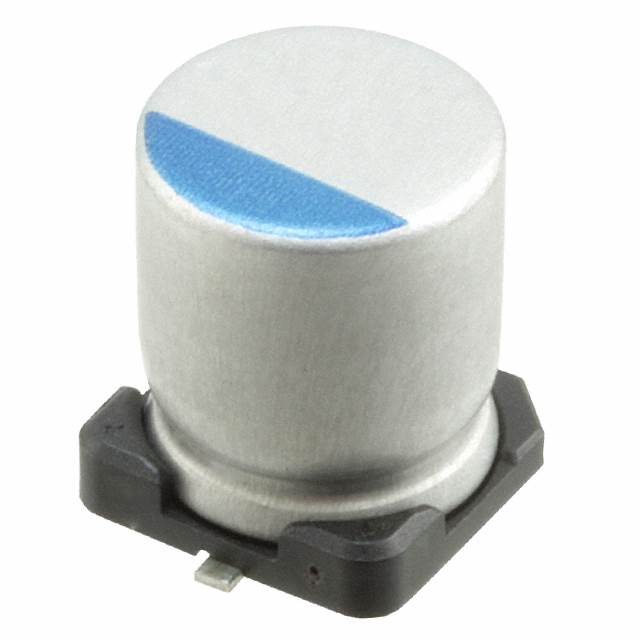

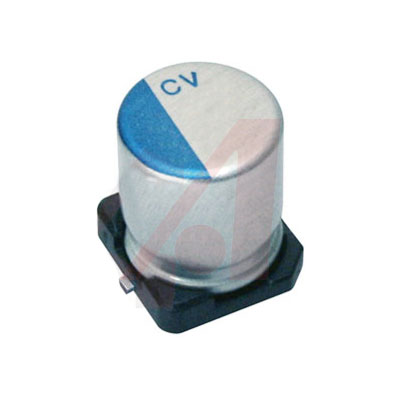

PCV1D151MCL6GS

Cap Aluminum Polymer 150uF 20VDC 20% 8 X 10mm SMD 0.028Ω 2000mA 3000H 105℃ Automotive T/R

**Features:

**

* High voltage Up to 63 V, Low ESR, High Ripple Current**

**

* Load Life of 3000 Hours at 105°C**

**

* SMD Type : Lead Free Reflow Soldering Condition at 260°C Peak Correspondence**

**

* Compliant to the RoHS Directive 2002/95/EC

立创商城:
150uF ±20% 20V

得捷:
CAP ALUM POLY 150UF 20% 20V SMD

艾睿:
With the PCV1D151MCL6GS conductive polymer aluminum solid capacitor, designed from Nichicon, you&s;ll be able to manage changes to the power entering your integrated circuit. It can withstand a voltage of 20 VDC. It has 2 terminals. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 105 °C. It has a tolerance of 20%. Its leakage current is 600@2Min μA. This product is 10 mm tall with a diameter of 8 mm.

Allied Electronics:
Capacitor; Aluminum Organic; Cap 150 uF; Tol 20%; Vol-Rtg 20 VDC; SMT; 8x10 mm

安富利:
Cap Aluminum 150uF 20V 20% 8 X 10mm SMD 0.028 Ohm 2000mA 3000 hr 105°C T/R

Chip1Stop:
Cap Aluminum 150uF 20V 20% 8 X 10mm SMD 0.028 Ohm 2000mA 3000h 105 C T/R

Verical:
Cap Aluminum Polymer 150uF 20VDC 20% 8 X 10mm SMD 0.028 Ohm 2000mA 3000h 105C Automotive T/R

Newark:
# NICHICON  PCV1D151MCL6GS  Electrolytic Capacitor, 150 µF, 20 V, CV Series, Radial Can - SMD, -55 °C
