Cap Aluminum Polymer 8.2uF 63VDC 20% 6.3 X 6mm SMD 0.056Ω 1200mA 3000H 105℃ Automotive T/R
铝聚合物器 径向,Can - SMD 56 毫欧 105°C 时为 3000 小时
欧时:
Capacitor Organic 8.2uF 63V SMT 6.3x6 mm
立创商城:
8.2uF ±20% 63V
得捷:
CAP ALUM POLY 8.2UF 20% 63V SMD
贸泽:
Aluminum Organic Polymer Capacitors 63V 8.2uF 105C
艾睿:

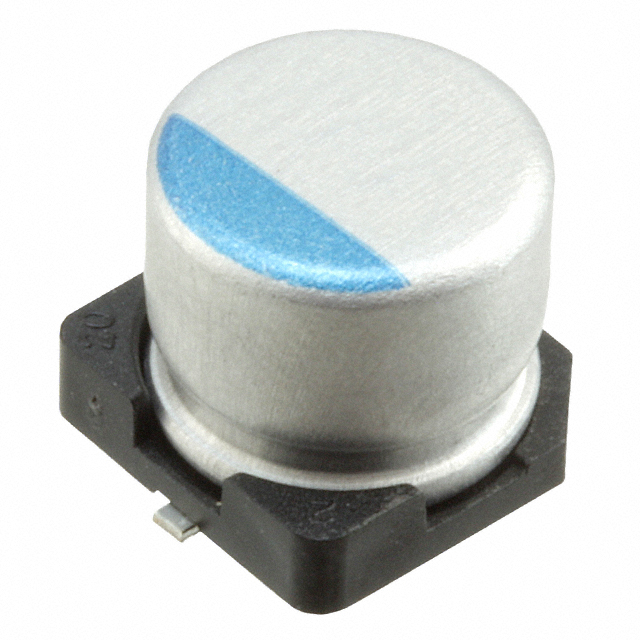

The PCV1J8R2MCL2GS conductive polymer aluminum solid capacitor, developed by Nichicon, can easily handle changes to the input load of a circuit. It can withstand a voltage of 63 VDC. It has 2 terminals. This product is 6 mm tall with a diameter of 6.3 mm. It has a tolerance of 20%. Its leakage current is 103@2Min μA. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 105 °C.
Allied Electronics:

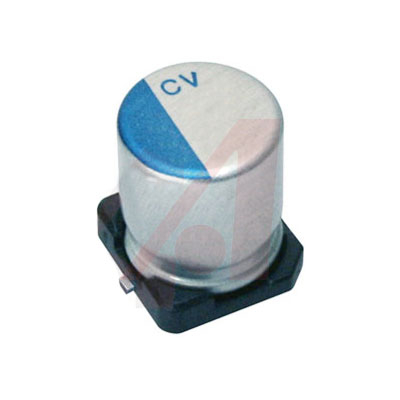

8.2uF 63 V Polymer Aluminium Electrolytic Capacitor, CV Series 3000h 6.3 x 6mm
Verical:
Cap Aluminum Polymer 8.2uF 63VDC 20% 6.3 X 6mm SMD 0.056 Ohm 1200mA 3000h 105C Automotive T/R
额定电压DC 63 V
电容 8.2 µF
等效串联电阻ESR 56 mΩ
容差 ±20 %
纹波电流 1200 mA
纹波电流低频 1.2A @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 63 VDC
安装方式 Surface Mount
封装 SMD
长度 6 mm
高度 6 mm
封装 SMD
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
寿命(小时) 3000 h
制造应用 -, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
