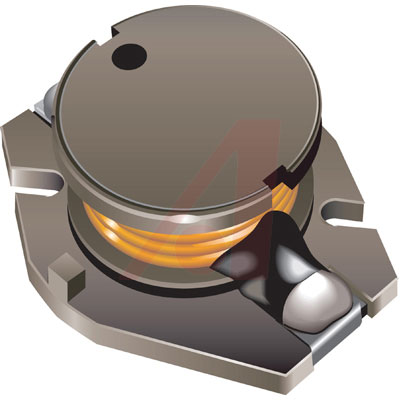

PM3316 Series Wire Wound ChokesAvailable in E6 series Low profile of only 5mm Inductance as low as 1.0μH RoHS compliant Applications in input/output of DC/DC converters, and power supplies for portable communication equipment ### Bourns 非标准表面安装电感器(扼流圈)
PM3316 系列线绕扼流圈
提供 E6 系列
薄型,仅 5mm
低至 1.0μH
符合 RoHS
直流/直流转换器和电源的输入/输出应用,用于便携式通信设备
得捷:
FIXED IND 10UH 2.9A 50 MOHM SMD
立创商城:
10uH ±20% 2.9A 50mΩ
欧时:
### PM3316 Series Wire Wound ChokesAvailable in E6 series Low profile of only 5mm Inductance as low as 1.0μH RoHS compliant Applications in input/output of DC/DC converters, and power supplies for portable communication equipment ### Bourns 非标准表面安装电感器(扼流圈)
艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power PM3316-100M-RC surface mount inductor from Bourns to save valuable space. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This SMD inductor has a maximum DC current of 2.9 A with a maximum resistance of 50m Ohm. This device utilizes wirewound technology. It has a tolerance of 20%. It has an inductance of 10u H. This product is 12.9 mm long, 5.3 mm tall and 10.2 mm deep. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 26M Hz.
Allied Electronics:
PM3316 WireWound SMDinductor w/ FerriteCore, 10 uH +/-20%WireWound 3.7A Idc Q:50
安富利:
Ind Power Wirewound 10uH 20% 1KHz 50Q-Factor Ferrite 2.9A T/R
Chip1Stop:
Ind Power Wirewound 10uH 20% 1KHz 50Q-Factor Ferrite 2.9A T/R
Verical:
Inductor Power Wirewound 10uH 20% 1KHz 50Q-Factor Ferrite 2.9A 0.05Ohm DCR T/R
Newark:
# BOURNS JW MILLER PM3316-100M-RC Surface Mount Power Inductor, PM3316 Series, 10 µH, 2.9 A, 3.7 A, Unshielded, 0.05 ohm
MASTER:
Inductor Power Wirewound 10uH 20% 1KHz 50Q-Factor Ferrite 2.9A 50mOhm DCR T/R
Electro Sonic:
Inductor Power Wirewound 10uH 20% 1KHz 50Q-Factor Ferrite 2.9A 50mOhm DCR T/R
额定电流 2.9 A
容差 ±20 %
电感 10 µH
自谐频率 26 MHz
Q值 50
屏蔽 No
电感公差 ±20 %
测试频率 1 kHz
电阻DC) 50 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 0.05 Ω
安装方式 Surface Mount
引脚数 2
封装 0.500" L x 0.393" W x 0.197" H 12.70mm x 10.00mm x 5.00mm
长度 12.7 mm
宽度 10.2 mm
高度 5.3 mm
封装 0.500" L x 0.393" W x 0.197" H 12.70mm x 10.00mm x 5.00mm
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PM3316-100M-RC Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
SDR1005-100ML 伯恩斯 | 功能相似 | PM3316-100M-RC和SDR1005-100ML的区别 |
SDR1005-100M 伯恩斯 | 功能相似 | PM3316-100M-RC和SDR1005-100M的区别 |
PM3316-100M 伯恩斯 | 功能相似 | PM3316-100M-RC和PM3316-100M的区别 |
