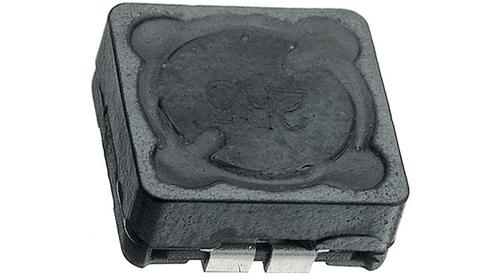

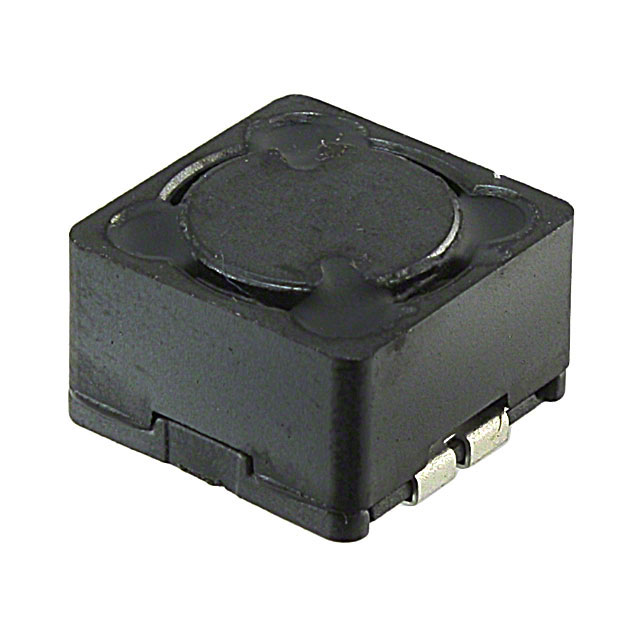

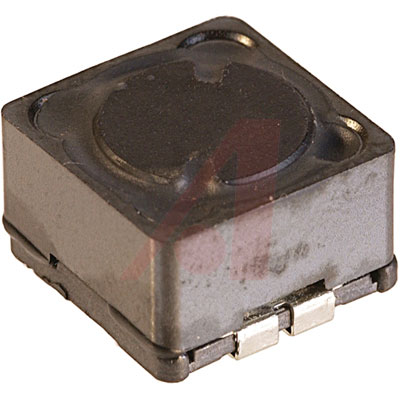

SRR1208-331KL

SRR1208 系列磁性屏蔽线绕电感器薄型屏蔽结构 高电流额定值。 非常适合于高频率。 应用：直流/直流转换器，EMI 滤波器。 ### Bourns 非标准表面安装电感器（扼流圈）

SRR1208 系列磁性屏蔽线绕器

薄型屏蔽结构

高电流额定值。

非常适合于高频率。

应用：直流/直流转换器，EMI 滤波器。

得捷:
FIXED IND 330UH 850MA 650MOHM SM

欧时:
Bourns SRR1208 系列 屏蔽 铁氧体芯材 330 μH 绕线贴片电感器 SRR1208-331KL, ±10%容差, 850mA Idc Q:13

贸泽:
固定电感器 330uH 10% SMD 1208

艾睿:
Use this power SRR1208-331KL surface mount inductor from Bourns to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has an inductance of 330u H. This product is 13 mm long, 8.5 mm tall and 13 mm deep. This SMD inductor has a maximum DC current of 850m A with a maximum resistance of 650m Ohm. It has a tolerance of 10%. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 1.8M Hz. This device utilizes wirewound technology.

Allied Electronics:
Inductor; Filter; Ind 330uH; Tol 10%; Cur 0.85A; SMT; Case 1208; DCR 0.65 Ohms

安富利:
Ind Power Shielded Wirewound 330uH 10% 1KHz 13Q-Factor Ferrite 850mA T/R

Chip1Stop:
Ind Power Shielded Wirewound 330uH 10% 1KHz 13Q-Factor Ferrite 850mA T/R

Verical:
Inductor Power Shielded Wirewound 330uH 10% 1KHz 13Q-Factor Ferrite 850mA 650mOhm DCR Automotive T/R

Newark:
# BOURNS  SRR1208-331KL  Surface Mount Power Inductor, SRR1208 Series, 330 µH, 850 mA, 1.12 A, Shielded, 0.65 ohm

MASTER:
Inductor Power Shielded Wirewound 330uH 10% 1KHz 13Q-Factor Ferrite 850mA 650mOhm DCR Automotive T/R

Online Components:
Inductor Power Shielded Wirewound 330uH 10% 1KHz 13Q-Factor Ferrite 850mA 650mOhm DCR Automotive T/R

Electro Sonic:
Inductor Power Shielded Wirewound 330uH 10% 1KHz 13Q-Factor Ferrite 850mA 650mOhm DCR Automotive T/R

Win Source:
FIXED IND 330UH 850MA 650 MOHM
