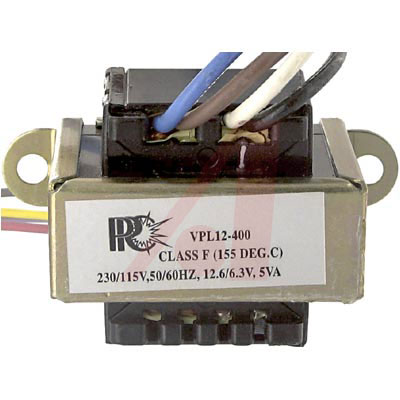

VPL12-400

TRIAD MAGNETICS VPL12-400 Isolation Transformer, World Series, 5VA, 1 x 115V, 2 x 230V, 2 x 6.3V, 780mA, World Series

TRIAD International Series Transformers are constructed with European style split bobbins to meet International Safety Agency Standards. The split bobbin construction reduces interwinding capacitance and eliminated the need for electrostatic shielding. 8", –0, +1" Leads.

**Features:**

* The International Series Is Available in Sizes from 5 VA to 56 VA

* 115/230 V 50/60 Hz Primary Windings

* 3500 V Isolation Between Primary and Secondary

* Designed with 6 mm Creepage Distance Primary to Secondary
