表面贴装保险丝NANO2® \u003e 250V UMF \u003e快熔型\u003e 464系列 Surface Mount Fuses NANO2® > 250V UMF > Fast-Acting > 464 Series

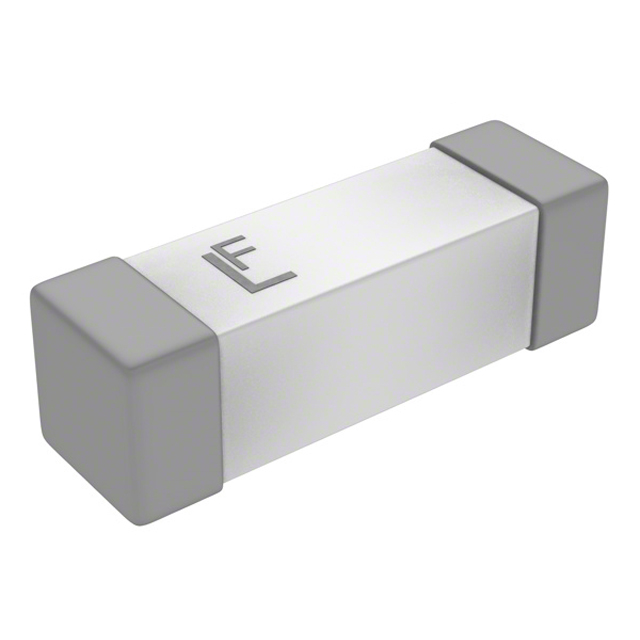

The 464 series NANO² surface-mount Fast Acting Fuse made of high performance ceramic body with silver plated brass caps. It complies with IEC Publication IEC60127-4-Universal Modular Fuse-Links UMF. This IEC standard has been accepted by world wide.
立创商城:
0464.500DR
艾睿:
Be protected by adding a chip 0464.500DR fuse developed by Littelfuse. This device has a current rating of 0.5. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0464.500DR fuse has a solder pad termination style. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 12.1 mm long, 4.5 mm tall and 4.5 mm deep. Its fuse is made from ceramic. The maximum AC voltage rating is 250 VAC.
Chip1Stop:
Fuse Chip Fast Acting 0.5A 250V SMD Solder Pad 12.1 X 4.5 X 4.5mm Ceramic T/R
Verical:
Fuse Chip Fast Acting 0.5A 250V SMD Solder Pad 12.1 X 4.5 X 4.5mm Ceramic T/R
Newark:
# LITTELFUSE 0464.500DR Fuse, Surface Mount, 464 Series, 500 mA, 250 VAC, Fast Acting, SMD
额定电压DC 250 V
额定电压AC 250 V
额定电流 0.5 A
电阻 0.283 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 12.1 mm
宽度 6.9 mm
高度 4.5 mm
封装 SMD-2
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Consumer Electronics, Power Management, Lighting, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
