0850030177

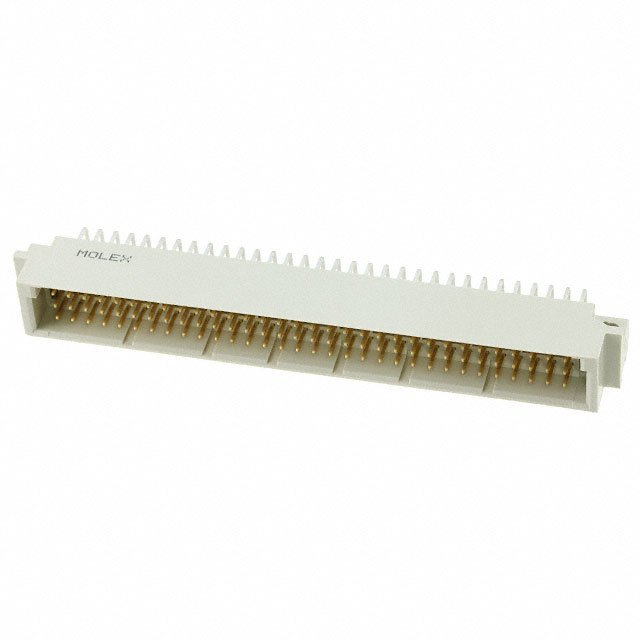

2.54毫米（ .100“ ）间距DIN 41612头， C风格，直角，通孔， 0.6微米（ 24μ ” ）选择金（Au ） ， 96电路 2.54mm .100" Pitch DIN 41612 Header, Style C, Right Angle, Through Hole, 0.6μm 24μ" Selective Gold Au, 96 Circuits

Think of "s din 41612 backplane connector the next time you need to connect several printed circuit boards together to form a computer system. This HDR connector"s 96 contacts that are made out of brass and plated with gold over nickel. It has a header type gender. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. It has a right angle body orientation. This is a 3-row connector. This device has a maximum current rating of 1 A/contact. The item will be shipped in tray orientation. This product is 94 mm long, 11.1 mm tall and 18.08 mm deep. This backplane connector has an operating temperature of -55 to 125 °C. 0850030177 is housed in gray polyester. It uses the solder termination method.
