9159 系列 板对板 直 2 mm 推拉 单件 边卡
**9159 Board-to-Board Connectors**
The 9159 series of Board-to-Board interconnect system allows two PCB"s to be mated end-to-end creating strips of LED lighting. Designed specifically for the unique Solid State Lighting SSL market requiring coplanar horizontal-to-horizontal PCB mating. The 1-Piece Card Edge connector was developed to provide a reliable, low cost and simple means of connecting multiple PCB"s together.
得捷:
CONN SSL BRIDGE 3POS 2MM
艾睿:
Conn Card Edge F 3 POS 2mm Solder RA SMD T/R
安富利:
Conn Card Edge F 3 POS 2mm Solder RA SMD T/R
富昌:
9159 系列 板对板 直 2 mm 推拉 单件 边卡
Newark:

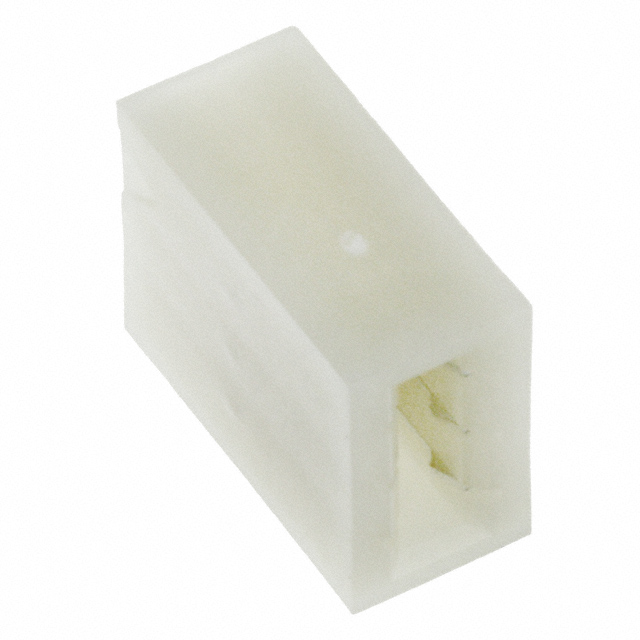

# AVX INTERCONNECT 009159003001106 Connector, 9159 Series, Card Edge, 3 Contacts, Receptacle, 2 mm
触点数 3
极性 Female
触点电镀 Tin
额定电流 2 A
排数 1
针脚数 3
拔插次数 5
额定电流Max 3A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
额定电压 250 V
安装方式 Surface Mount

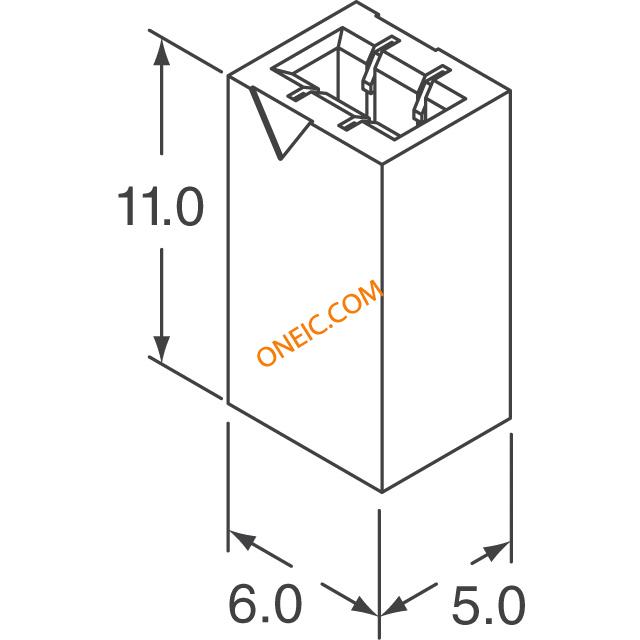

高度 5 mm
外壳颜色 White
颜色 White
触点材质 Copper Alloy
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
