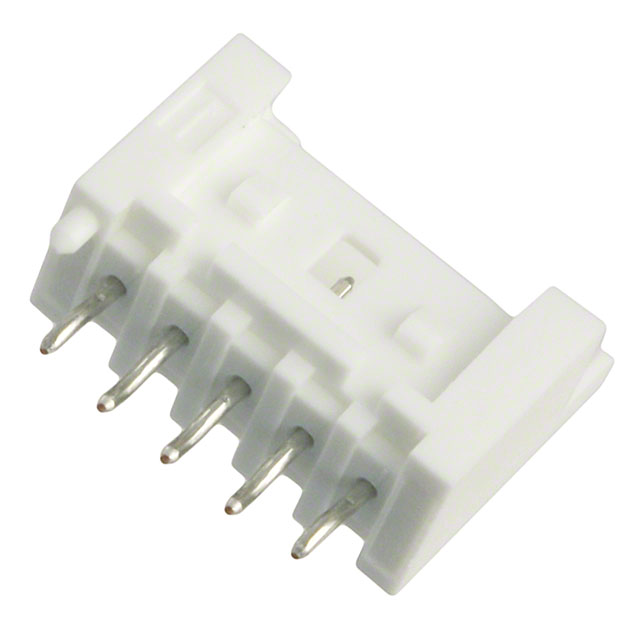

2.50毫米（ .098 “ ）间距小锁™线对板头，垂直，摩擦PositiveLock ， 5电路，无铅 2.50mm .098" Pitch Mini-Lock™ Wire-to-Board Header, Vertical, Friction and PositiveLock, 5 Circuits, Lead-free
针座 通孔 5 位置 0.098"（2.50mm）
得捷:
CONN HEADER VERT 5POS 2.5MM
艾睿:
This shrouded 0533750510 header connector from Molex reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 5 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a maximum voltage rating of 250 V. Its pitch is 2.5 mm. It has a header type gender. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 3 A/contact. This product is 14.9 mm long, 11.5 mm tall and 6.8 mm deep. It uses the solder termination method. 0533750510 is housed in natural polyester. This connector has an operating temperature of -40 to 105 °C.
Chip1Stop:
Conn Shrouded Header HDR 5 POS 2.5mm Solder ST Thru-Hole Bag
Verical:
Conn Shrouded Header 4 Sides HDR 5 POS 2.5mm Solder ST Thru-Hole Mini-Lock™ Bag
