044 100 1414P 100 101

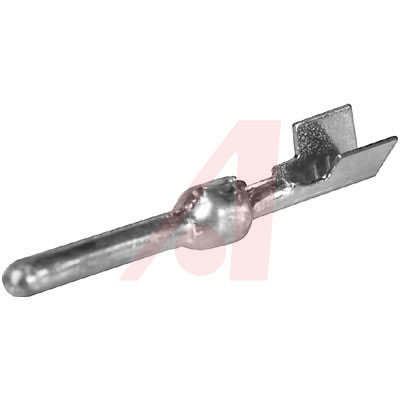

connector comp, 044-series, poke-home crimp pin contact, for 14, 16, 18AWG wire

Industrial Male Power Connector, 100 Contacts

044 Series high-performance environmentally sealed connectors feature a resilient, one-piece design incorporating crimp contacts, in six insert configurations. The contacts fit 14, 16 and 18 AWG wire with the Outside Diameter 0.080" to 0.130" 2.03 to 3.30 mm. Primary and secondary mating seals and discrete wire seals resist liquids. Ideal for auto/truck, marine, industrial, traffic control, security and mining ventilation systems. 250 VAC RMS at 8 A continuous.

.

* Temperature Range:** -40° to +125°C. Order contacts and tooling separately. Mustuse insertion tool for contacts.

Individually packed 100 male contacts for hand tool crimping machines.
