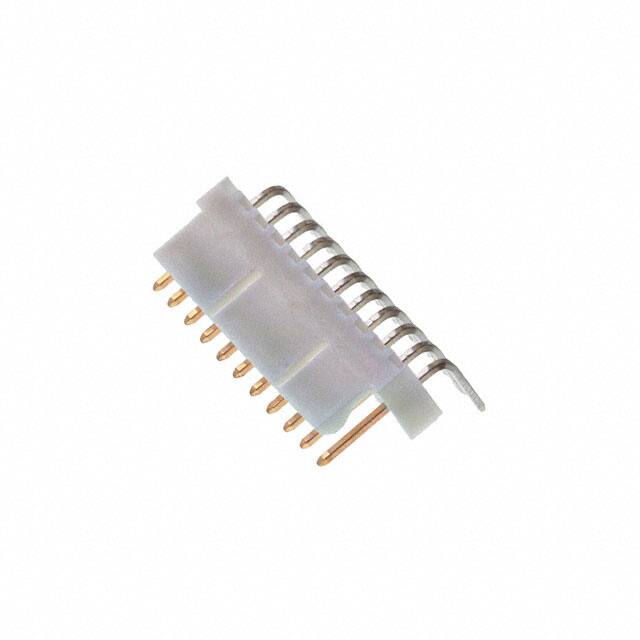

2.54毫米（ .100 ）间距KK®固体头，直角，用摩擦锁， 11电路， 0.51μm （ 20μ ），金（Au ）镀层 2.54mm .100 Pitch KK® Solid Header, Right Angle, with Friction Lock, 11 Circuits, 0.51μm 20μ Gold Au Plating
Connector Header Through Hole, Right Angle 11 position 0.100" 2.54mm
得捷:
CONN HEADER R/A 11POS 2.54MM
贸泽:
集管和线壳 KK .100" HDR 11P RA 20AU
艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this wire to board 0022122114 header connector from Molex. This HDR connector&s;s 11 contacts that are made out of brass and plated with gold over nickel. It has a maximum voltage rating of 250 V. It has a header type gender. Its pitch is 2.54 mm. It has a right angle body orientation. This is a 1-row connector. This device has a maximum current rating of 4 A/contact. This product is 27.94 mm long, 6.35 mm tall and 12.83 mm deep. 0022122114 is housed in white nylon. It uses the solder termination method. This connector has an operating temperature of -40 to 80 °C.
安富利:
Conn Wire to Board HDR 11 POS 2.54mm Solder RA Thru-Hole Bulk
