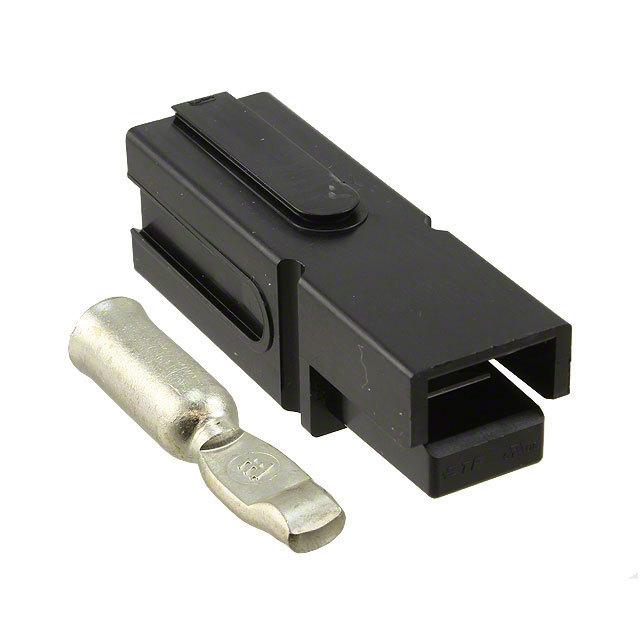

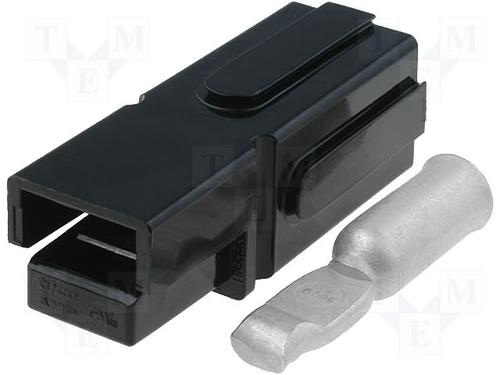

AMP FROM TE CONNECTIVITY 1604002-2 矩形电源连接器, 线缆, Power 120系列, 压接, 插头, 插座, 1 触点, 公、母
The power connector from is perfect for powering your circuit because it comes with the least amount of losses. This PL connector"s a single contact that is made out of copper and plated with silver. This connector has a single port. It has a straight body orientation. It has a plug type gender. 1604002-2 is housed in polycarbonate. This device has a maximum current rating of 120 A. This product is 69.75 mm deep. Its 1 terminal uses the crimp termination method.
触点数 1
线规 2 AWG
触点电镀 Silver
额定电压DC 80.0 V
额定电流 120 A
排数 1
易燃性等级 UL 94 V-0
针脚数 1
额定电流Max 120A/触头
额定电压Max 600 VDC
额定电压 600 V
引脚数 1
封装 -
长度 69.74 mm
宽度 22.42 mm
高度 22.42 mm
封装 -
外壳颜色 Black
颜色 Black
触点材质 Copper
工作温度 -20℃ ~ 105℃
外壳材质 Polycarbonate
产品生命周期 Active
包装方式 Bag
制造应用 Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
