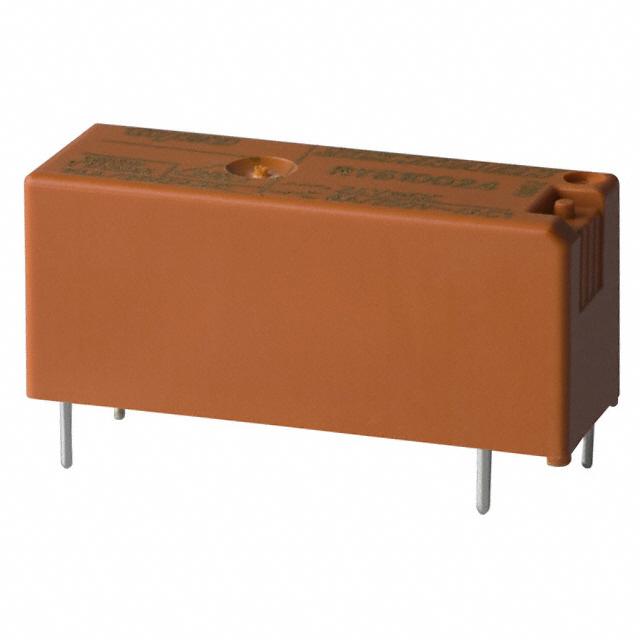

Electromechanical Relay 48VDC 9.391KΩ 8A SPDT 28.5mm 10.1mm 12.3mm THT Power Relay
Electromechanical Relay 48VDC 9.391KOhm 8A SPDT 28.5x10.1x12.3mm THT Power Relay
Product Highlights
Relay Type = Miniature Power PCB Relay
Relay Style = PCB
RYII Series
Contact Arrangement = 1 Form C, SPDT, 1 C/O
Contact Current Rating = 8 Amps.
得捷:
RY610048
贸泽:
General Purpose Relays RY610048
艾睿:
Power Relay 48VDC 8A SPDT28.5x10.1x12.3mm THT
安富利:
Electromechanical Relay SPDT 8A 48VDC 9.391KOhm Through Hole
Verical:
Electromechanical Relay 48VDC 9.391KOhm 8A SPDT 28.5mm 10.1mm 12.3mm THT Power Relay
MASTER:
Electromechanical Relay 48VDC 9.391KOhm 8A SPDT 28.5x10.1x12.3mm THT Power Relay
Powell:
Reinforced PCB Relays up to 8A
Online Components:
Electromechanical Relay 48VDC 9.391KOhm 8A SPDT 28.5x10.1x12.3mm THT Power Relay
Electro Sonic:
Electromechanical Relay 48VDC 9.391KOhm 8A SPDT 28.5x10.1x12.3mm THT Power Relay
额定电压AC 400 V
触点额定电流 8 A
线圈电流 5.11 mA
线圈电阻 9.391 KΩ
额定电流Max 8 A
线圈电压DC 48 V
额定功率Max 2 kVA
开关电流Max 8 A
工作温度Max 70 ℃
工作温度Min -40 ℃
额定电压AC Max 400 V
安装方式 Through Hole
引脚数 5
高度 12.3 mm
触点材质 Silver Cadmium Oxide
工作温度 -40℃ ~ 70℃
产品生命周期 Unknown
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536410050
