1217096-2概述

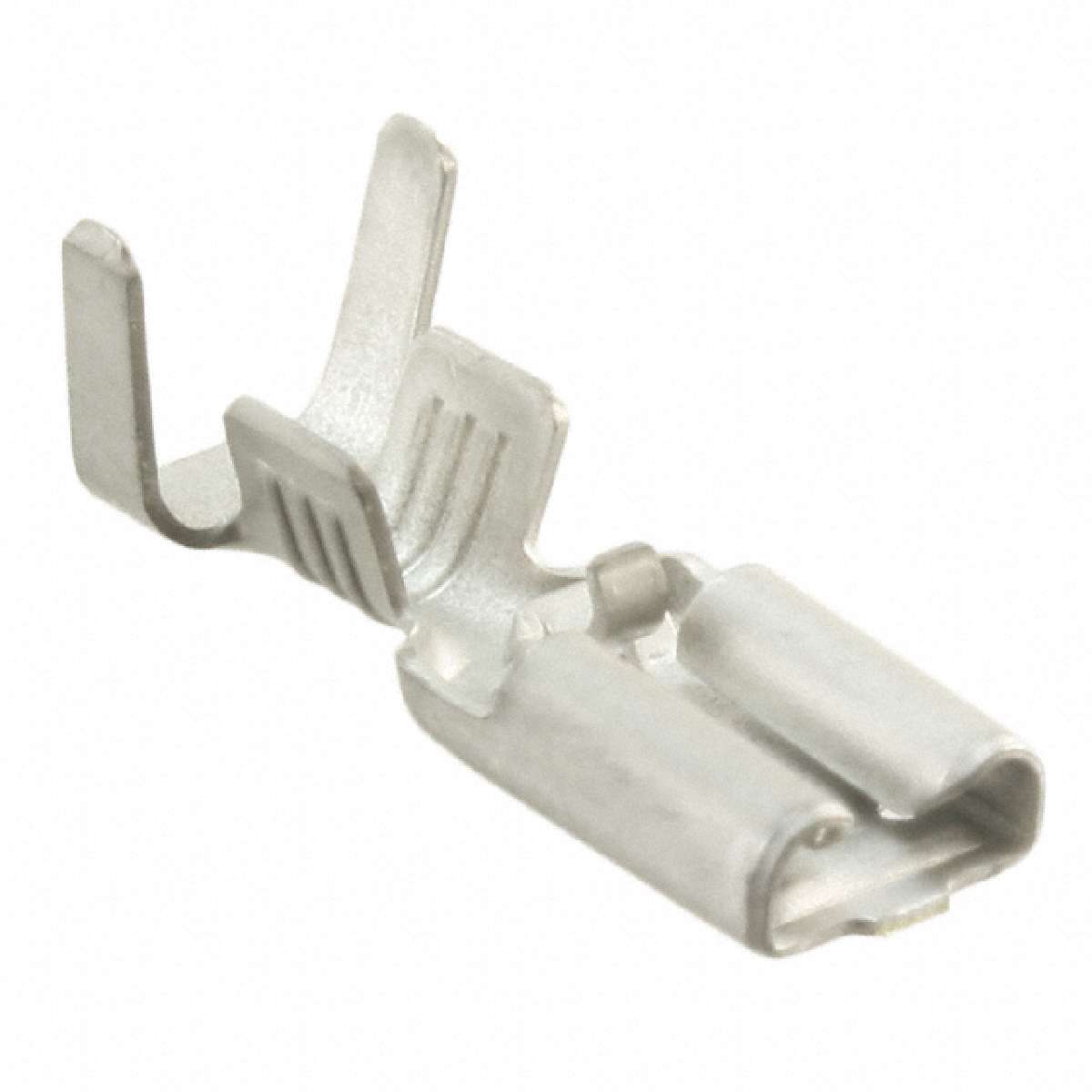

Quick Disconnect Terminal 14-18AWG F 17.02mm 6.98mm Tin Strip

PL 187 RECEPTACLE 18-14 AWG TPBR


得捷:
CONN QC RCPT 14-18AWG 0.187


立创商城:
1217096-2


艾睿:
The quick disconnect terminal 1217096-2 wire terminal from TE Connectivity works by making a solid shielded connection between two of your terminals. It has a female type gender. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. Its wire is 18 AWG.


安富利:
Quick Disconnect Terminal 18AWG F Tin Strip


Powell:
Positive Lock Connectors


1217096-2中文资料参数规格
技术参数

极性 Female

线规 14AWG ~ 18AWG

封装参数

封装 -

外形尺寸

长度 17.02 mm

封装 -

物理参数

触点材质 Brass

材质 Brass

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

数据手册

在线购买1217096-2
型号: 1217096-2
描述:Quick Disconnect Terminal 14-18AWG F 17.02mm 6.98mm Tin Strip
