稳压二极管 5.0W 9.1V 7.5uA 520mA 9.2A
- 齐纳 9.1 V 5 W ±5% 通孔 DO-15
得捷:
DIODE ZENER 9.1V 5W DO15
立创商城:
9.1V ±5% 5W
贸泽:
稳压二极管 5.0W 9.1V 7.5uA 520mA 9.2A
艾睿:
This 1N5346B-TP zener diode from Micro Commercial Components is perfect for blocking a voltage. Its test current is 150 mA. This device has a maximum regulator current of 520 mA. Its maximum power dissipation is 5000 mW. Its maximum leakage current is 7.5 μA. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This zener diode has an operating temperature range of -55 °C to 150 °C. It is made in a single configuration. This zener device has a nominal voltage of 9.1 V and a voltage tolerance of 5%.
Chip1Stop:
Diode Zener Single 9.1V 5% 5W 2-Pin DO-15 T/R
Win Source:
DIODE ZENER 9.1V 5W DO15
额定电压DC 9.10 V
容差 ±5 %
额定功率 5.00 W
正向电压 1.2V @1A
耗散功率 5 W
测试电流 150 mA
稳压值 9.1 V
正向电压Max 1.2V @1A
额定功率Max 5 W
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 5 W
安装方式 Through Hole
引脚数 2

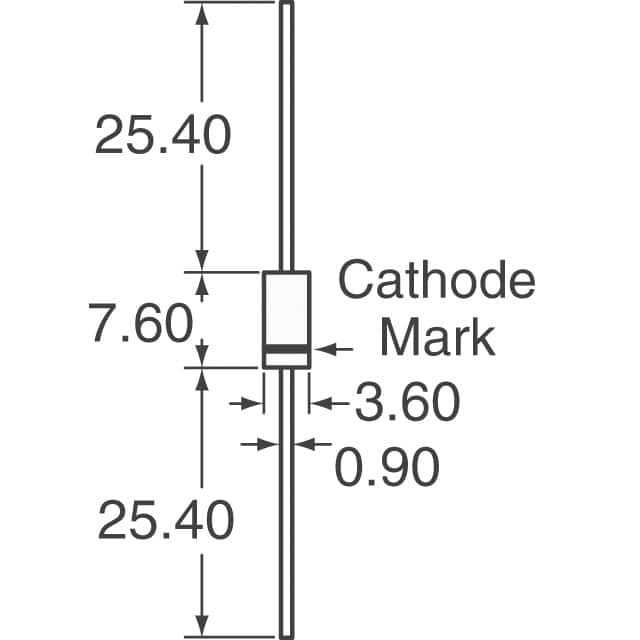

封装 DO-15-2
长度 7.6 mm
宽度 3.6 mm
高度 3.6 mm
封装 DO-15-2
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5346B-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
1N5346B EIC | 功能相似 | 1N5346B-TP和1N5346B的区别 |
1N5346B-AP 美微科 | 功能相似 | 1N5346B-TP和1N5346B-AP的区别 |
