1718573002

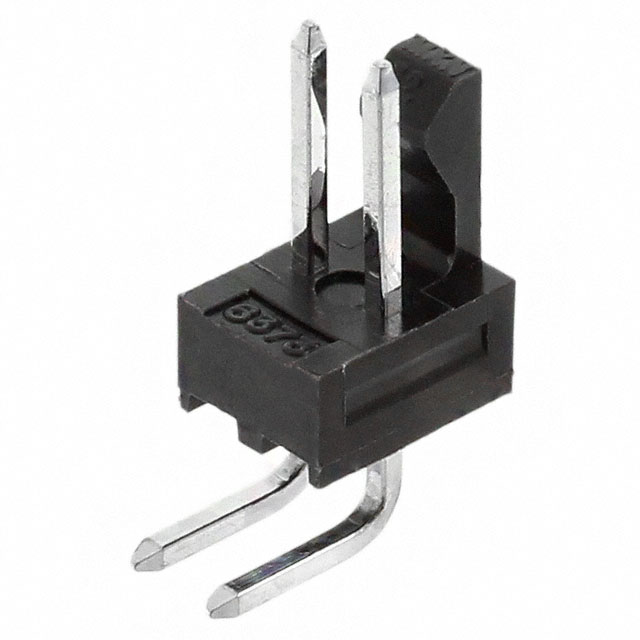

Conn Wire to Board HDR 2POS 2.54mm RA Thru-Hole Bag

针座 通孔，直角 2 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 2POS 2.54MM

艾睿:
Molex brings you their wire to board 1718573002 header connector, an important safety tool for protecting your electronic components from accidental damage. This HDR connector&s;s 2 contacts that are made out of brass and plated with tin over nickel. This is a 1-row connector. It has a right angle body orientation. It has a header type gender. It has a maximum voltage rating of 250 V. Its pitch is 2.54 mm. This device has a maximum current rating of 4 A/contact. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. 1718573002 is housed in black nylon. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method. This product is 4.93 mm long, 6.35 mm tall and 12.96 mm deep.

安富利:
Conn Wire to Board HDR 2 POS 2.54mm RA Thru-Hole Bag

Verical:
Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole KK® T/R

儒卓力:
**02 KK254 RPC WTB HEADER TIN **
