DO-15 17V 5W
- 齐纳 17 V 5 W ±5% 通孔 DO-15
得捷:
DIODE ZENER 17V 5W DO15
立创商城:
17V ±5% 5W
艾睿:
This 1N5354B-TP zener diode from Micro Commercial Components will allow you to run it in the reverse direction. Its maximum leakage current is 0.5 μA. This device has a maximum regulator current of 280 mA. Its maximum power dissipation is 5000 mW. Its test current is 70 mA. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It is made in a single configuration. This zener device has a nominal voltage of 17 V and a voltage tolerance of 5%. This zener diode has an operating temperature range of -55 °C to 150 °C.
Verical:
Zener Diode Single 17V 5% 2.5Ohm 5000mW 2-Pin DO-15 T/R
额定电压DC 17.0 V
容差 ±5 %
额定功率 5.00 W
正向电压 1.2V @1A
耗散功率 5000 mW
测试电流 70 mA
稳压值 17 V
正向电压Max 1.2V @1A
额定功率Max 5 W
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 2

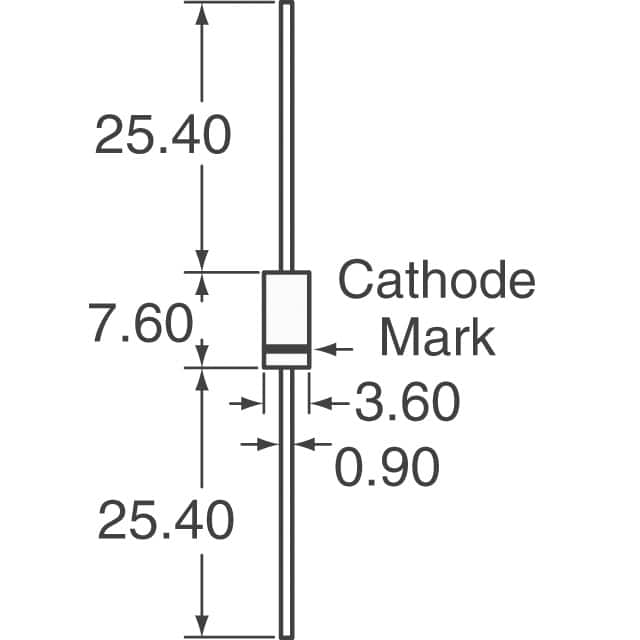

封装 DO-204AC
长度 7.6 mm
宽度 3.6 mm
高度 3.6 mm
封装 DO-204AC
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5354B-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
1N5354B 安森美 | 类似代替 | 1N5354B-TP和1N5354B的区别 |
1N5354BG 安森美 | 功能相似 | 1N5354B-TP和1N5354BG的区别 |
