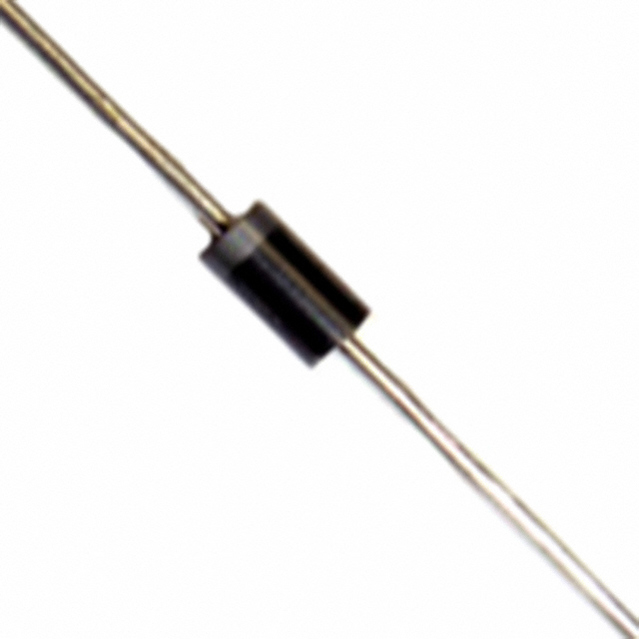

DO-15 33V 5W
- 齐纳 33 V 5 W ±5% 通孔 DO-15
得捷:
DIODE ZENER 33V 5W DO15
立创商城:
33V ±5% 5W
贸泽:
Zener Diodes 5.0W 33V
艾睿:
This 1N5364B-TP zener diode from Micro Commercial Components will allow you to run it in the reverse direction. Its test current is 40 mA. Its maximum power dissipation is 5000 mW. This device has a maximum regulator current of 144 mA. Its maximum leakage current is 0.5 μA. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This zener diode has an operating temperature range of -55 °C to 150 °C. This zener device has a nominal voltage of 33 V and a voltage tolerance of 5%. It is made in a single configuration.
额定电压DC 33.0 V
容差 ±5 %
额定功率 5.00 W
正向电压 1.2V @1A
耗散功率 5 W
测试电流 40 mA
稳压值 33 V
正向电压Max 1.2V @1A
额定功率Max 5 W
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 2

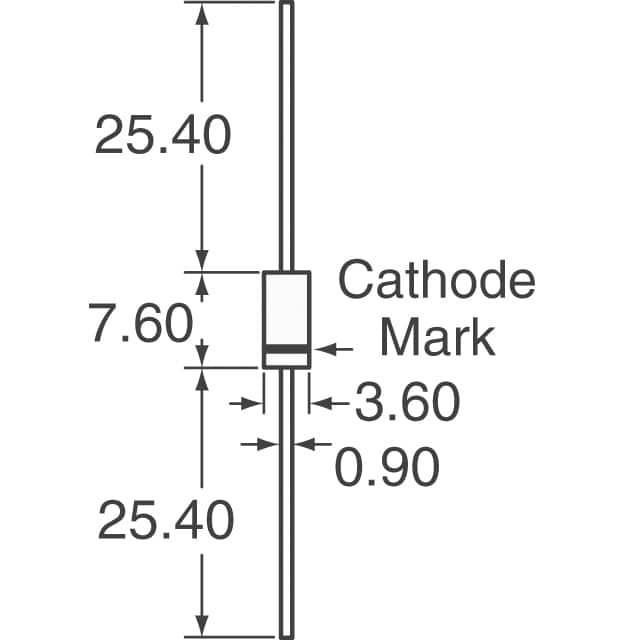

封装 DO-15-2
长度 7.6 mm
宽度 3.6 mm
高度 3.6 mm
封装 DO-15-2
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5364B-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
1N5363B-TP 美微科 | 类似代替 | 1N5364B-TP和1N5363B-TP的区别 |
1N5364BRLG 安森美 | 功能相似 | 1N5364B-TP和1N5364BRLG的区别 |
1N5364B-AP 美微科 | 功能相似 | 1N5364B-TP和1N5364B-AP的区别 |
