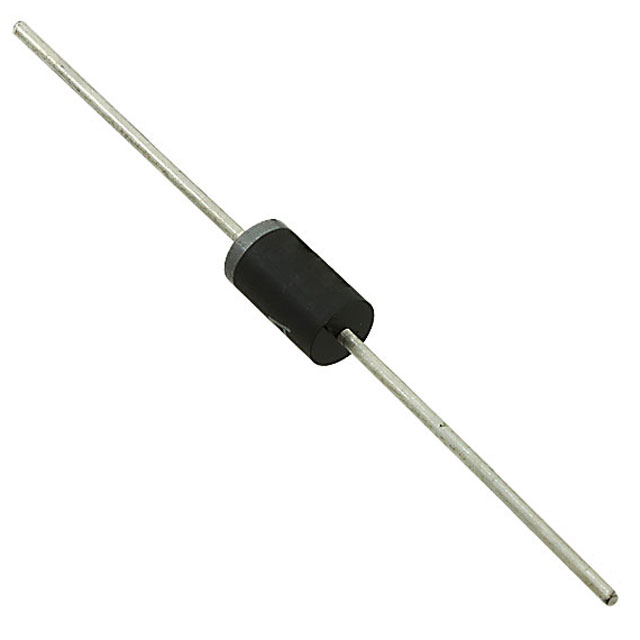

1.5KE27A-TP

DO-201AE 23.1V 1500W

Features

• Economical Series and Quick Response

• Available in Both Unidirectional and Bidirectional Construction

• 1500Watts Peak Power Dissipation

• Excellent Clamping Capability

• Lead Free Finish/RoHS CompliantNote 1 "P" Suffix designates RoHS Compliant. See ordering information

• UL Recognized File#E331408

• Epoxy meets UL 94 V-0 flammability rating

• Moisture Sensitivity Level 1

得捷:
TVS DIODE 23.1VWM 37.5VC DO201AE

立创商城:
Vrwm:23.1V 1.5kW

艾睿:
Do not risk expensive equipment and machinery from surges with this 1.5KE27A-TP TVS diode from Micro Commercial Components. Its maximum leakage current is 5 μA. Its test current is 1 mA. Its peak pulse power dissipation is 1500 W. This device&s;s maximum clamping voltage is 37.5 V and minimum breakdown voltage is 25.7 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.

Chip1Stop:
Diode TVS Single Uni-Dir 23.1V 1.5KW 2-Pin DO-201AE T/R
