军事整流器 MILITARY RECTIFIERS
DESCRIPTION

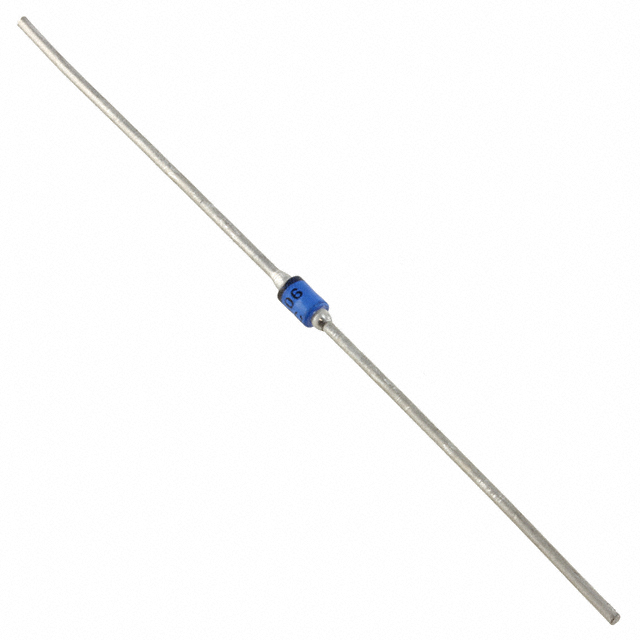

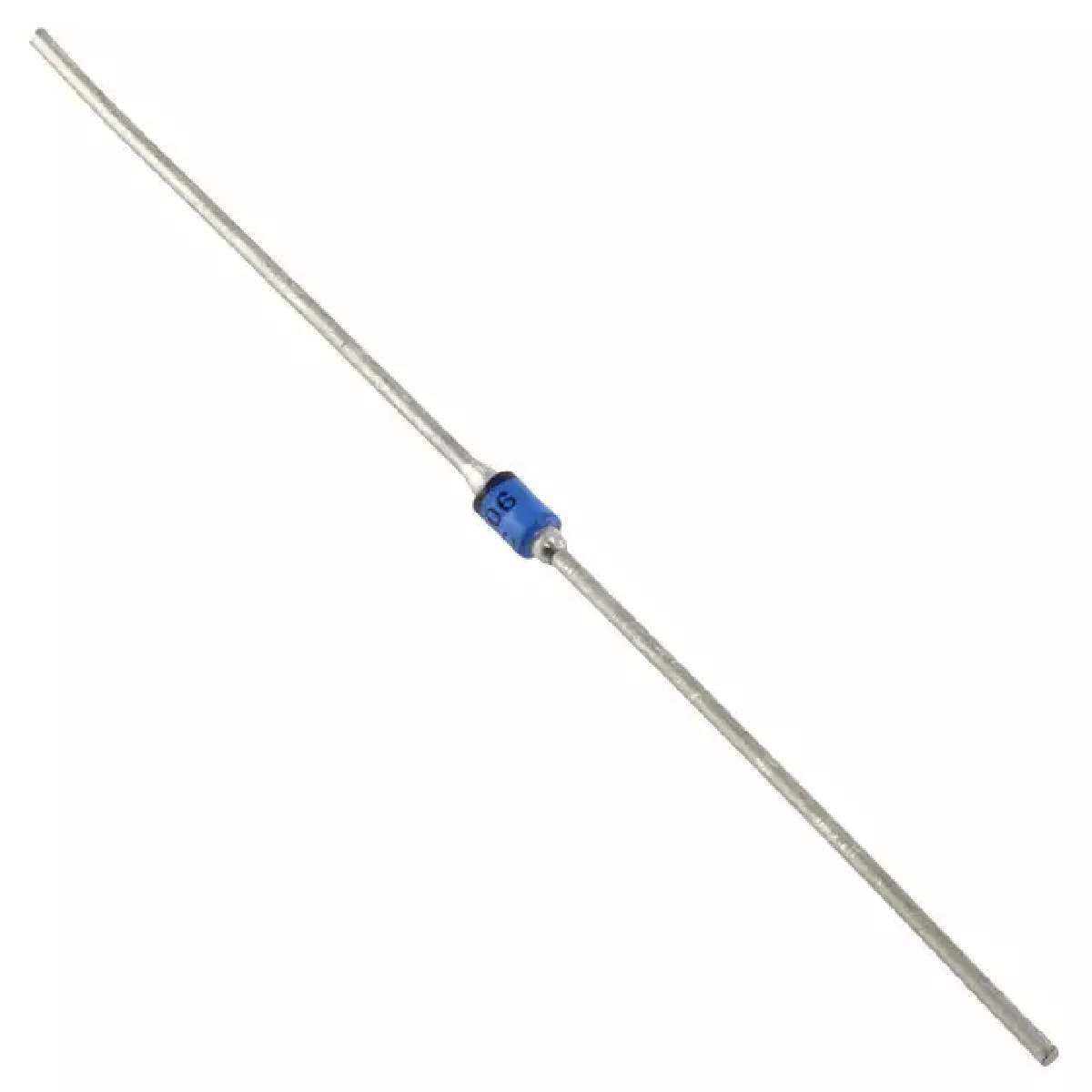

This “fast recovery”rectifier diode series is militaryqualified to MIL-PRF-19500/359 and is ideal for high-reliability applications where a failure cannot be tolerated. These industry-recognized 1.0 Amp rated rectifiersfor working peak reverse voltages from 200 to 1000 volts are hermetically sealed with voidless-glass construction using aninternal “Category I” metallurgical bond.
FEATURES
• Popular JEDEC registered to 1N4948 series
• Voidless hermetically sealed glass package
• Triple-Layer Passivation
• Internal “Category I”Metallurgical bonds
• Working Peak Reverse Voltage 200 to 1000Volts.
• JAN, JANTX, and JANTXV available per MIL-PRF-19500/359 for JANS, see 1N5615 thru 1N5623
• Surface mount equivalents alsoavailable inasquare end-cap MELF configuration with“US” suffix seeseparate data sheet for 1N5615US thru 1N5623US
APPLICATIONS/ BENEFITS
• Fast recovery 1 Amp rectifiers200 to 1000 V
• Military and other high-reliability applications
• Generalrectifier applicationsincluding bridges, half bridges, catch diodes, etc.
• High forward surge current capability
• Extremelyrobust construction
• Lowthermal resistance
• Controlled avalanche with peakreverse power capability
• Inherentlyradiation hardas described in MicroNote 050
