Conn; Term Blk; PCB; Screw; 4; 3.5mm; 45Deg; 26-16AWG; Green; 10A; 160V

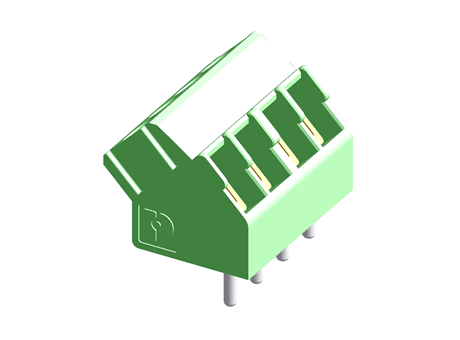

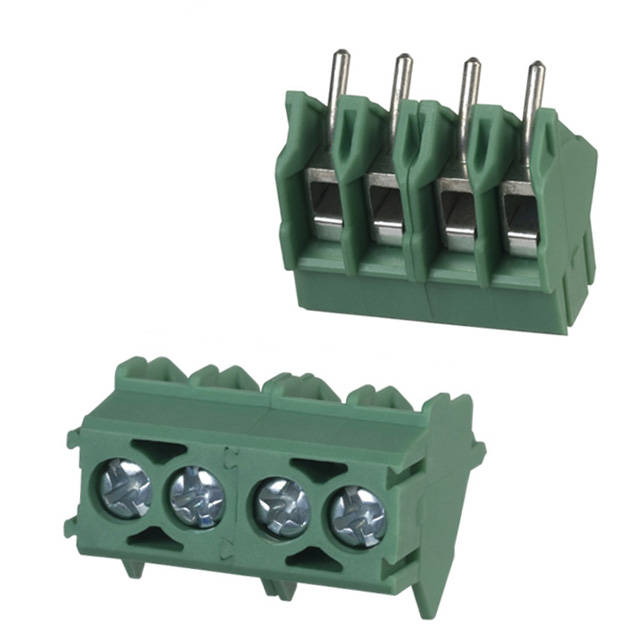

** Contact COMBICON PTA 3.5mm PCB Terminal Blocks**
Professional 3.5 mm pitch screw terminals from the Phoenix Contact PTA series
得捷:
TERM BLOCK 4POS 45DEG 3.5MM PCB
艾睿:
Phoenix Contact&s;s pc terminal block 1988972 PCB terminal block will ensure strong connections between circuits. This is a 1-row connector. Its pitch is 3.5 mm. It has a maximum voltage rating of 160 V. 1988972 is housed in polyamide. This device has a maximum current rating of 17.5 A. It uses the solder termination method. This product is 14 mm long, 9.9 mm tall and 11.2 mm deep. Its wire is 16-26 AWG.
Allied Electronics:
Conn; Term Blk; PCB; Screw; 4; 3.5 mm; 45 Deg; 26-16 AWG; Green; 10 A; 160 V
Verical:
Conn PC Terminal Block 4 POS 3.5mm Solder Thru-Hole 17.5A
MASTER:
PCB terminal block - nominal current: 17.5 A - rated voltage III/2: 200 V - nominal cross section: 1.5 mm² - pitch: 3.5 mm - number of positions: 4 - connection method: Screw connection with wire protector - mounting: Wave soldering - conductor/PCB conn
Online Components:
Conn PC Terminal Block 4 POS 3.5mm Solder Thru-Hole 17.5A
Electro Sonic:
PCB terminal block - nominal current: 17.5 A - rated voltage III/2: 200 V - nominal cross section: 1.5 mm² ...
触点数 4
线规 16AWG ~ 26AWG
额定电流 17.5 A
排数 1
电路数 4
易燃性等级 UL 94 V-0
针脚数 4
额定电流Max 17.5 A
额定电压Max 160 V
额定电压 160 V
工作电压Max 200 V
安装方式 Through Hole
引脚间距 3.5 mm
长度 14 mm
宽度 11.2 mm
高度 9.9 mm
引脚间距 3.5 mm
外壳颜色 Green
颜色 Green
触点材质 Copper Alloy
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536904000
