1985221

3.5mm 排数:1 每排P数:5

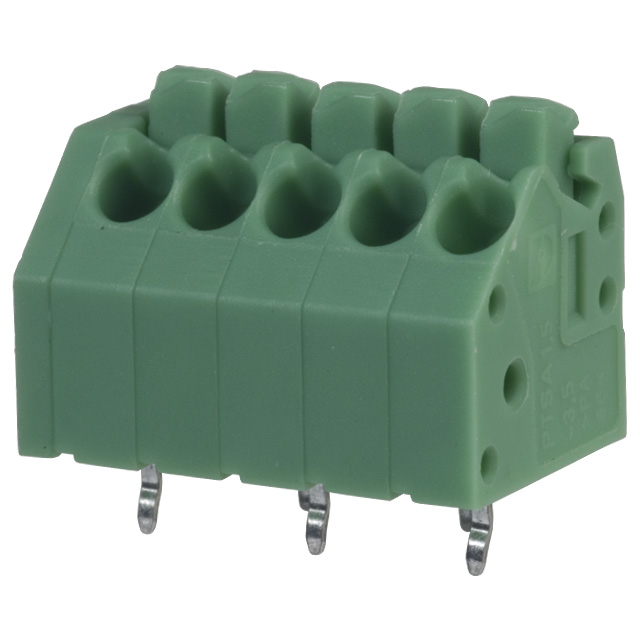

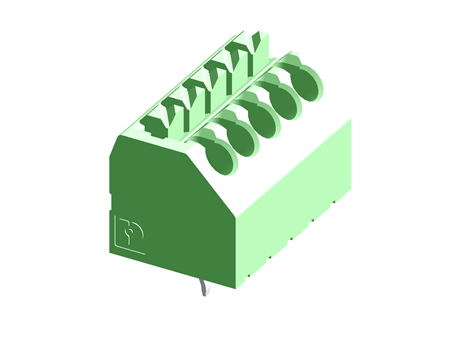

Printed Circuit Terminal Block, Spring-Cage Type Connection

* Nominal current 2 A

* Nominal voltage 250 V

The printed circuit terminal block have pitch of 3.5 mm.

得捷:
TERM BLOCK 5POS 45DEG 3.5MM PCB

立创商城:
3.5mm 排数:1 每排P数:5

贸泽:
Fixed Terminal Blocks PTSA 1.5/5-3.5-Z

艾睿:
Joining multiple circuits is easy with this spring cage 1985221 PCB terminal block from Phoenix Contact. This is a 1-row connector. Its pitch is 3.5 mm. It has a maximum voltage rating of 250 V. 1985221 is housed in polyamide. This device has a maximum current rating of 2 A. This product is 19 mm long, 13.1 mm tall and 12 mm deep. Its wire is 16-20 AWG. It uses the solder termination method.

Allied Electronics:
Conn; Term Blk; PCB; Spring Cage; 5; 3.5 mm; 45Deg; 20-16 AWG; 2A; 250V; Solder

Verical:
Conn PC Terminal Block 5 POS 3.5mm Solder Thru-Hole 8A

MASTER:
Conn PC Terminal Block 5 POS 3.5mm Solder Thru-Hole 8A

Online Components:
Conn Spring Cage 5 POS 3.5mm Solder Thru-Hole 8A

Electro Sonic:
Conn PC Terminal Block 5 POS 3.5mm Solder Thru-Hole 8A
