1733444

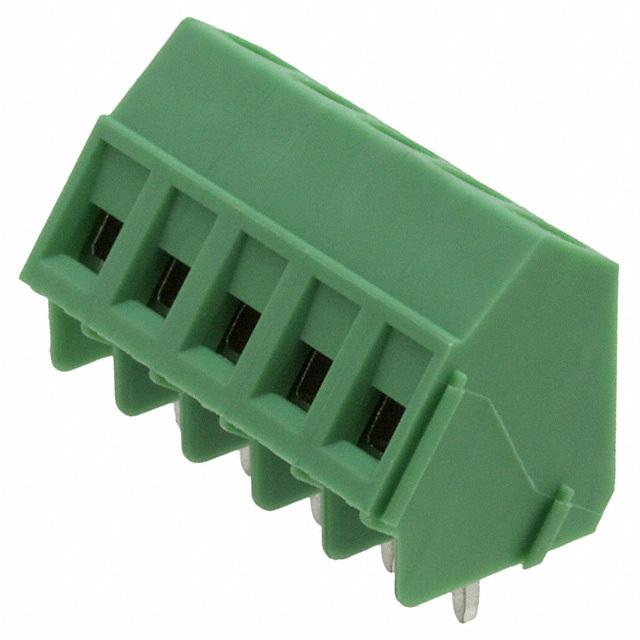

Phoenix Contact COMBICON SMKDSP 系列 5mm 节距 5 路 绿色 印刷电路板接线端子块 1733444, 通孔

Conn PC Terminal Block 5 POS 5mm Solder Thru-Hole 22A

得捷:
TERM BLOCK 5POS 55DEG 5MM PCB

欧时:
Phoenix Contact COMBICON SMKDSP 系列 5mm 节距 5 路 绿色 印刷电路板接线端子块 1733444, 通孔

贸泽:
固定接线端子 5P 5mm 35DEG

艾睿:
This pc terminal block 1733444 PCB terminal block from Phoenix Contact will join multiple circuits by connecting to the bare wire. Its pitch is 5 mm. It has a maximum voltage rating of 250 V. This is a 1-row connector. 1733444 is housed in polyamide. This device has a maximum current rating of 22 A. Its wire is 14-26 AWG. It uses the solder termination method. This product is 25 mm long, 15.3 mm tall and 13.4 mm deep.

Verical:
Conn PC Terminal Block 5 POS 5mm Solder Thru-Hole 17.5A

MASTER:
PCB terminal block - nominal current: 17.5 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² - pitch: 5 mm - number of positions: 5 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connec

Online Components:
Conn PC Terminal Block 5 POS 5mm Solder Thru-Hole 22A

Electro Sonic:
PCB terminal block - nominal current: 17.5 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² ...
