1991037

固定接线端子 SPT 2.5/ 8-H-5.0 5MM 8P HORZ SPR

8 接线板 - 线至板 水平，带板 0.197"（5.00mm） 通孔

得捷:
TERM BLK 8POS SIDE ENTRY 5MM PCB

贸泽:
固定接线端子 SPT 2.5/ 8-H-5.0 5MM 8P HORZ SPR

艾睿:

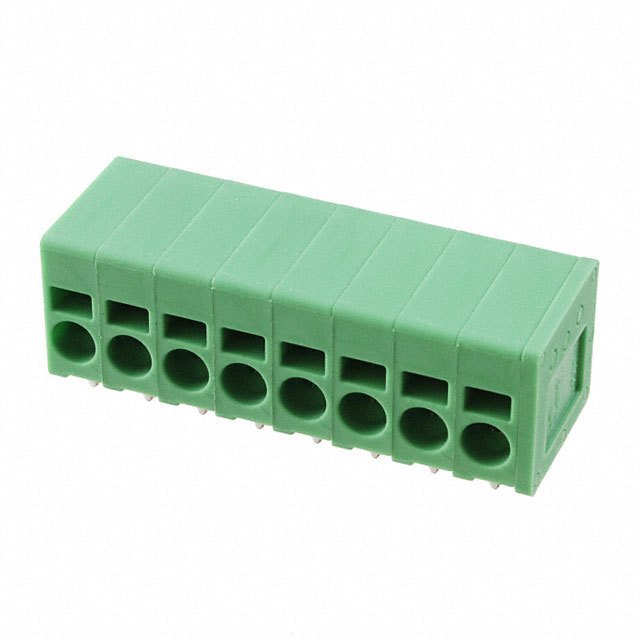

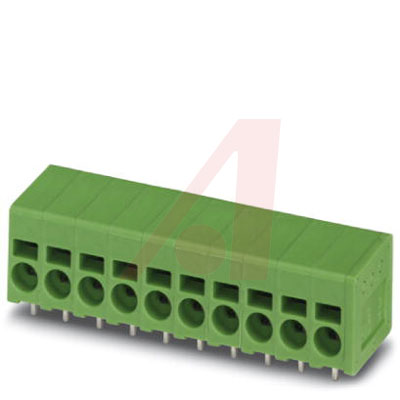

This spring cage 1991037 PCB terminal block manufactured from Phoenix Contact will connect wires together. Its pitch is 5 mm. This is a 1-row connector. It has a right angle body orientation. It has a maximum voltage rating of 250 V. 1991037 is housed in polyamide. This device has a maximum current rating of 24 A. This product is 41.4 mm long, 13.5 mm tall and 14.4 mm deep. Its wire is 12-24 AWG. It uses the solder termination method.

Allied Electronics:
Conn; TermBlk; PCB; SpringCg; 8Poles; 5mmPitch; FrontEntry; GN; 24-12AWG; 24A; 400V

Verical:
Conn PC Terminal Block 8 POS 5mm Solder RA Thru-Hole 24A

MASTER:
PCB terminal block - nominal current: 24 A - rated voltage III/2: 400 V - nominal cross section: 2.5 mm² - pitch: 5 mm - number of positions: 8 - connection method: Push-in spring connection - mounting: Wave soldering - conductor/PCB connection directio

Online Components:
Conn Spring Cage 8 POS 5mm Solder RA Thru-Hole 24A

Electro Sonic:
PCB terminal block - nominal current: 24 A - rated voltage III/2: 400 V - nominal cross section: 2.5 mm² ...
