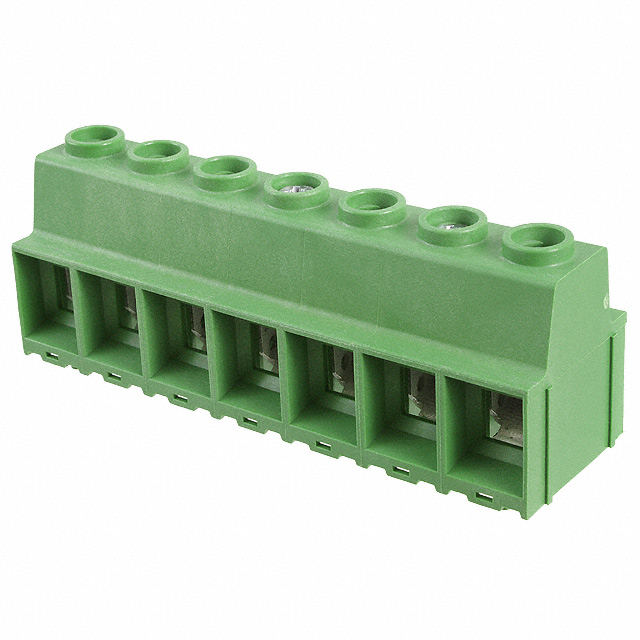

Conn Power Terminal Blocks RCP 7POS 15mm Screw ST Thru-Hole 130A/Contact Carton
PWR TB 2PIN 7P,15.00 PCB W/PEG
得捷:
TERM BLK 7P SIDE ENTRY 15MM PCB
贸泽:
Pluggable Terminal Blocks 15MM PWR TERM BLK 7P W/ POLARIZATION PIN
艾睿:
This power terminal blocks 1986714-7 PCB terminal block manufactured from TE Connectivity will bridge different sections of wires together. This RCP connector has 7 RCP contacts. It has a maximum voltage rating of 600 VAC. Its pitch is 15 mm. It has a receptacle type gender. It has a straight body orientation. This is a 1-row connector. 1986714-7 is housed in polyamide. This device has a maximum current rating of 130 A/contact. Its wire is 1-20 AWG. It uses the screw termination method.
安富利:
PWR TB 2PIN 7P,15.00 PCB W/PEG
Verical:
Conn Power Terminal Block RCP 7 POS 3.8mm/15mm Solder ST Thru-Hole 130A/Contact Carton
Newark:
# AMP - TE CONNECTIVITY 1986714-7 PWR TB 2PIN 7P,15.00 PCB W/PEG New
MASTER:
POWER TERMINAL BLOCK, SOLDERABLE UP TO 275DEG C DOUBLE PIN MODULAR 02 - 12 POLES
Online Components:
PWR TB 2PIN 7P,15.00 PCB W/PEG
Electro Sonic:
PWR TB 2PIN 7P,15.00 PCB W/PEG
触点数 7
线规 1AWG ~ 20AWG
触点电镀 Tin
额定电流 130A, 135A
绝缘电阻 1000 MΩ
排数 1
电路数 7
针脚数 7
额定电流Max 130A/触头
工作温度Max 110 ℃
工作温度Min -40 ℃
额定电压Max 600 VAC
额定电压 600 V
工作电压Max 600 VAC
安装方式 Through Hole
高度 39 mm
外壳颜色 Green
颜色 Green
触点材质 Copper Alloy
工作温度 -40℃ ~ 110℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1986714-7 TE Connectivity 泰科 | 当前型号 | 当前型号 |
1986713-7 泰科 | 功能相似 | 1986714-7和1986713-7的区别 |
