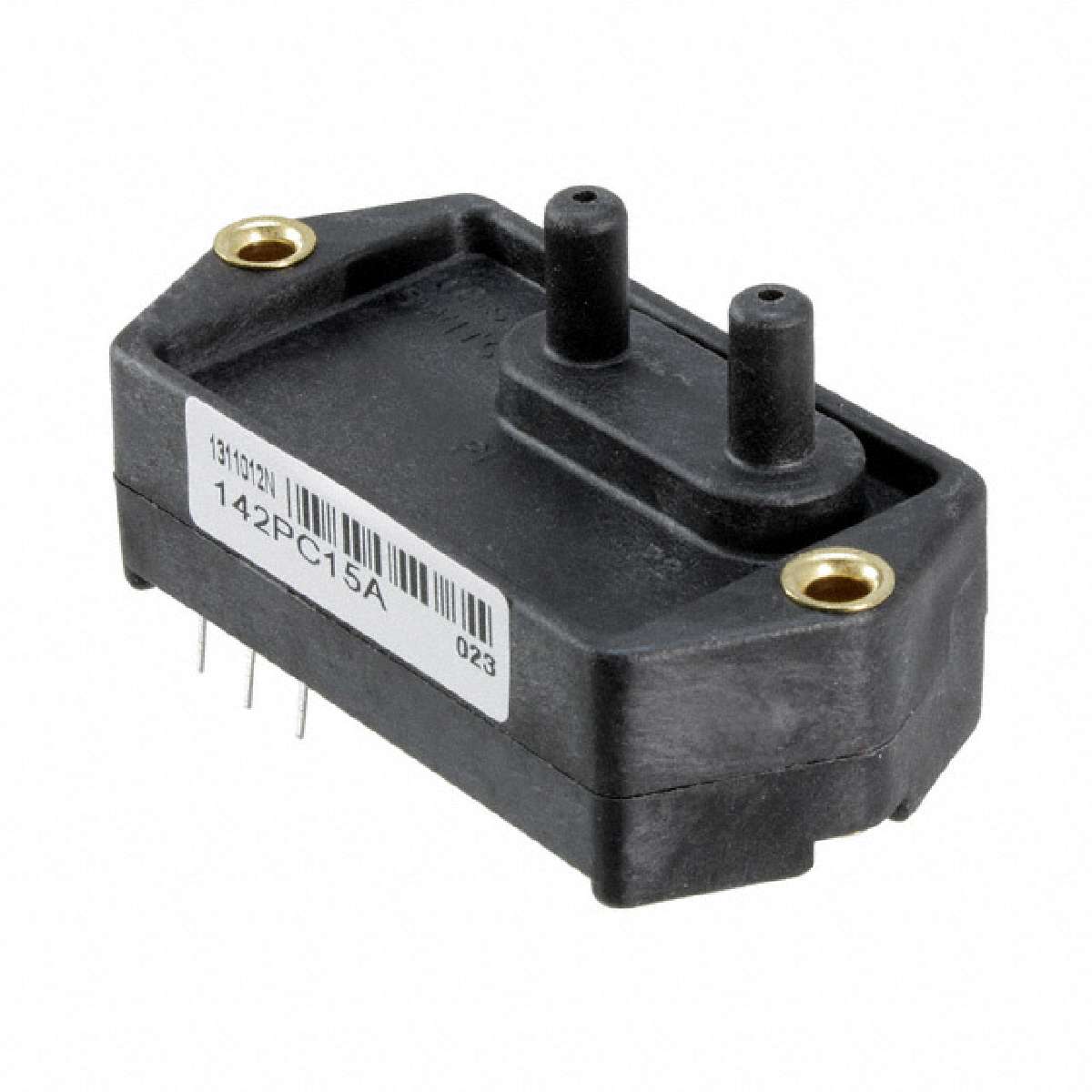

HONEYWELL 142PC15A 压力传感器, 放大, 电压, 15 psi, 绝对值, 8 VDC, 直型, 8 mA
Pressure Sensor, 1 ms Response Time, 8 mA Current Rating
* PCB terminals on opposite side from the ports
Fully signal conditioned.
得捷:
SENSOR 15PSIA 0.2" 5.33V
欧时:
压力传感器
贸泽:
Board Mount Pressure Sensors 0Psi to 15Psi Absolute 3-Pin
e络盟:
压力传感器, 放大, 15 psi, 电压, 绝对值, 8 VDC, 直型, 8 mA
艾睿:
This 142PC15A industrial pressure sensor from Honeywell is the ideal component for use in heavy-duty applications involving various force calculations. This device&s;s minimum operating supply voltage of 7 V, while its maximum is 16 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. Its operating pressure range is 0psi to 15psi, while its maximum overload pressure is 45psi. It has a response time of 1 ms.
Allied Electronics:
Absolute Pressure Sensor For Gas, 15psiMax Pressure, 7 - 16 V dc
Chip1Stop:
Pressure Sensor 0psi to 15psi Absolute 3-Pin
Verical:
Board Mount Pressure Sensor 0psi to 15psi Absolute 3-Pin
Newark:
# HONEYWELL 142PC15A Pressure Sensor, Amplified, 15 psi, Absolute, Straight, Voltage, 8 VDC, 8 mA
MASTER:
Board Pressure Sensor
Powell:
Sensors, Pressure Transducers, Piezoresistive Silicon
Online Components:
Pressure Sensor 0psi to 15psi Absolute 3-Pin
Electro Sonic:
Board Pressure Sensor
电源电压DC 8.00V max
额定电压DC 8.00 V
输出电压 1V ~ 6V
输出电流 10.0 mA
供电电流 8 mA
输入电流 20 mA
工作温度Max 85 ℃
工作温度Min 40 ℃
精度 ±0.4 %
额定电压 8 VDC
电源电压 7V ~ 16V
电源电压Max 8 V
安装方式 Through Hole
引脚数 3
封装 SIP-3
封装 SIP-3
重量 28.0 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 板式安装
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 9026204000
