Switch Toggle ON OFF ON SPDT Locking Lever Screw 15A 277VAC 250VDC 372.85VA Panel Mount with Threads
These switches are qualified under MIL-S-3950.
艾睿:

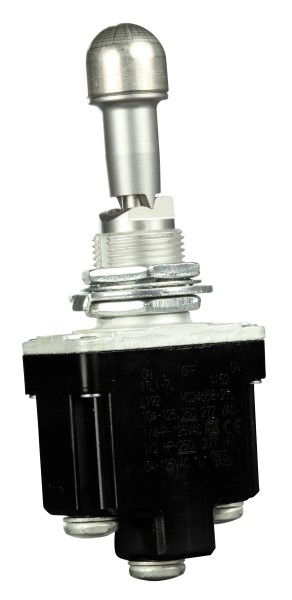

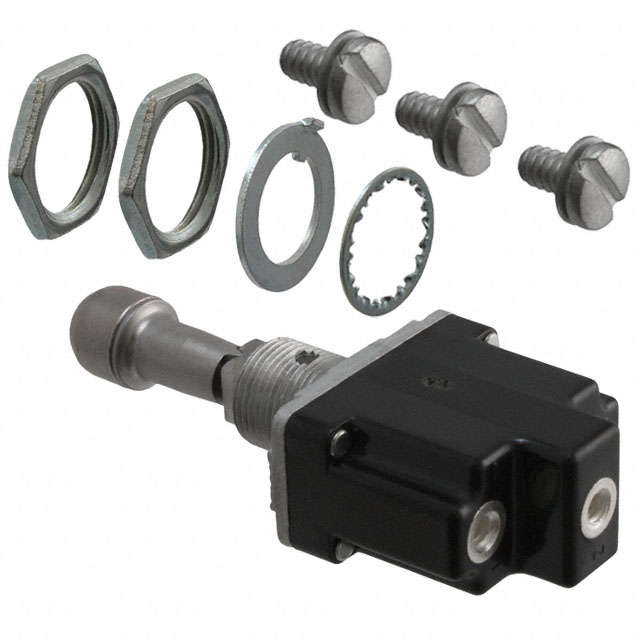

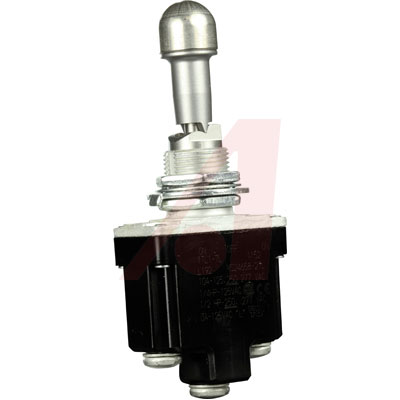

Control the status of your project with this 1TL1-7L toggle switch from Honeywell. This device has a maximum current rating of 15 A @ 115VAC 28VDC. It has a SPDT configuration. This toggle switch has a minimum operating temperature of -65 °C and a maximum of 71 °C. The 1TL1-7L toggle switch has a screw termination style. The maximum AC voltage rating is 277 VAC and the maximum DC voltage rating is 250 VDC. This product is 28.4 mm long and 15.7 mm.
Allied Electronics:
Toggle Switch, SPDT, On Off On, Lockout 1 pos, 10A 125VAC, Sealed, UL CSA
Chip1Stop:
Switch Toggle ON OFF ON SPDT Locking Lever Screw 15A 277VAC 250VDC 372.85VA Panel Mount with Threads
Verical:
Switch Toggle ON OFF ON SPDT Locking Lever Screw 15A 277VAC 250VDC 372.85VA Panel Mount with Threads
MASTER:
MICRO SWITCH™ Toggle Switches: TL Series, Single Pole Double Throw SPDT 3 Position Mom. On - Off - Mom. On, Screw Terminals, Locking Lever Locked Out Of Extreme Position, Keyway Side, Military Part Number MS24658-27L
Online Components:
MICRO SWITCH™ Toggle Switches: TL Series, Single Pole Double Throw SPDT 3 Position, Center off, Screw Terminals
GOPHER:
Toggle Switch SPDT 10 AMP ONOFON SCREW TERMINALS LOCKED TOGGLE MICRO SWITCH
Electro Sonic:
MICRO SWITCH™ Toggle Switches: TL Series, Single Pole Double Throw SPDT 3 Position Mom. On - Off - Mom. On, ...
额定电流 10 A
触点类型 SPDT
额定电流Max 15A @115VAC, 28VDC
额定功率Max 372.85 VA
工作温度Max 71 ℃
工作温度Min -65 ℃
额定电压 125 VAC
额定电压DC Max 250 V
安装方式 Panel, Screw-In
长度 28.4 mm
高度 29.46 mm
触点材质 Silver Cadmium Oxide
工作温度 -65℃ ~ 71℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
ECCN代码 EAR99
HTS代码 8536509065
