16SEPC270MX

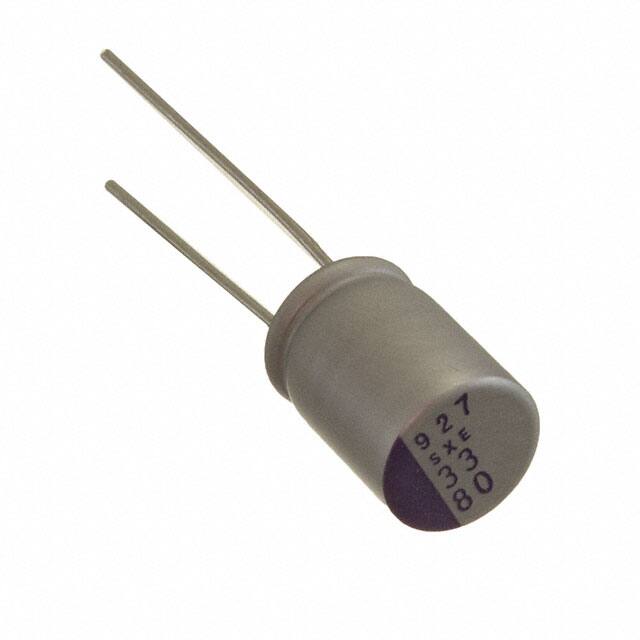

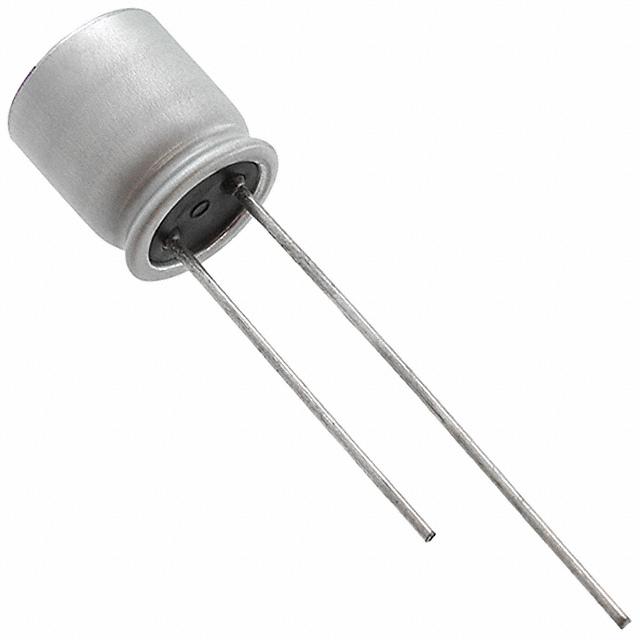

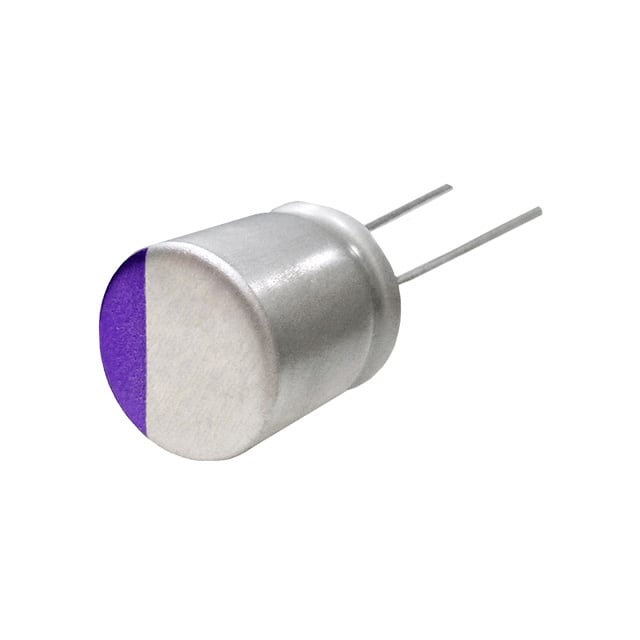

PANASONIC ELECTRONIC COMPONENTS  16SEPC270MX  铝电解电容, OS-CON, SEPC系列, 270 µF, 0.01 ohm, 16 V, 5000 hours @ 105°C

With the conductive polymer aluminum solid capacitor, designed from , you"ll be able to manage changes to the power entering your integrated circuit. It can withstand a voltage of 16 VDC. Users like its long lead wire form. This part has a lead diameter of 0.6 mm. It has 2 terminals. It has a tolerance of 20%. The 16SEPC270MX conductive polymer aluminum solid capacitor has a radial termination style. This product is 9Max mm tall with a diameter of 8 mm. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 105 °C. Its leakage current is 864@2Min μA. This product"s terminal pitch is 3.5 mm.
