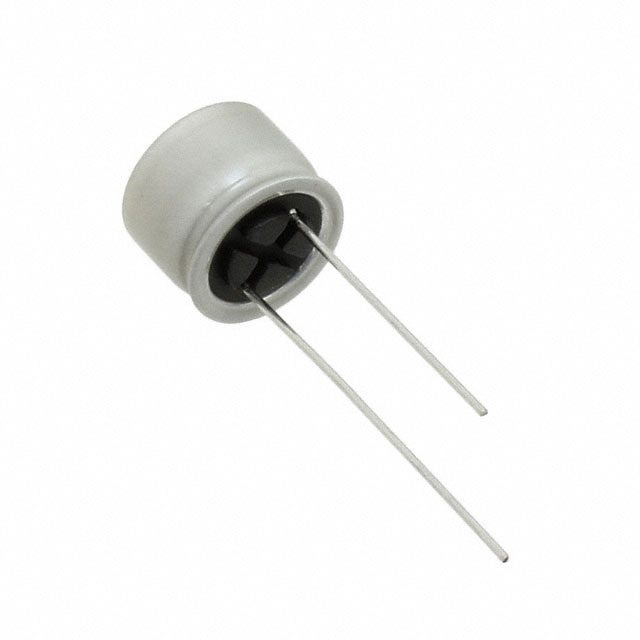

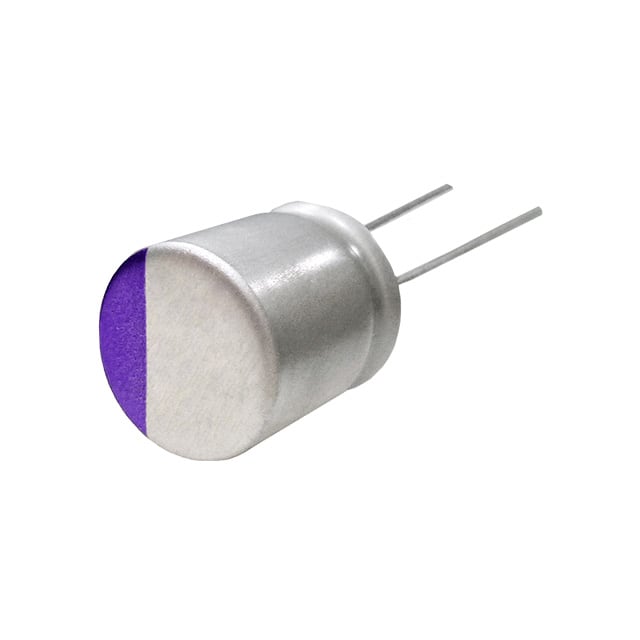

16SEQP150M

PANASONIC ELECTRONIC COMPONENTS  16SEQP150M  铝电解电容, SEQP系列, 150 µF, 径向引线, 0.03 ohm, 16 V, 1000 hours @ 125°C

150 µF 16 V 铝聚合物器 径向，Can 30 毫欧 125°C 时为 1000 小时

立创商城:
150uF ±20% 16V

贸泽:
Aluminum Organic Polymer Capacitors 16volts 150uF 30mohm 10x8mm OSCON

e络盟:
电容, 铝 聚合物, 150UF, 16V, 径向

艾睿:
Thanks to Panasonic and their 16SEQP150M conductive polymer aluminum solid capacitor, you can feel rest assured that your integrated circuit will be protected from sudden changes in the load. It can withstand a voltage of 16 VDC. Users like its long lead wire form. This part has a lead diameter of 0.5 mm. It has 2 terminals. This product&s;s terminal pitch is 5 mm. The 16SEQP150M conductive polymer aluminum solid capacitor has a radial termination style. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 125 °C. Its leakage current is 480@2Min μA. It has a tolerance of 20%. This product is 8Max mm tall with a diameter of 10 mm.

安富利:
Cap Aluminum 150uF 16V 20% 10 X 8mm Radial Aluminum Cylindrical Can 5mm 0.03 Ohm 955mA 1000hr 125°C Bulk

Verical:
Cap Aluminum Polymer 150uF 16VDC 20% 10 X 8mm Radial 5mm 0.03 Ohm 955mA 1000h 125C Bulk

Newark:
# PANASONIC ELECTRONIC COMPONENTS  16SEQP150M  CAP, ALU POLYMER, 150UF, 16V, RADIAL
