1733732

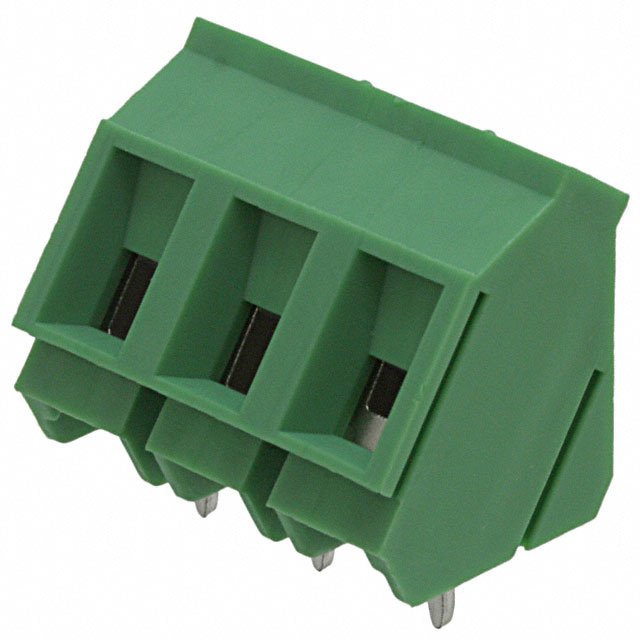

Phoenix Contact GSMKDS 系列 3路 7.62mm节距 通孔 印刷电路板接线端子块 1733732, 螺钉端接

Conn PC Terminal Block 3 POS 7.62mm Solder Thru-Hole 24A

得捷:
TERM BLOCK 3POS 35DEG 7.62MM PCB

欧时:
Phoenix Contact GSMKDS 系列 3路 7.62mm节距 通孔 印刷电路板接线端子块 1733732, 螺钉端接

立创商城:
7.62mm 排数:1 每排P数:3

艾睿:
Joining multiple circuits is easy with this pc terminal block 1733732 PCB terminal block from Phoenix Contact. It has a maximum voltage rating of 500 V. This is a 1-row connector. Its pitch is 7.62 mm. 1733732 is housed in polyamide. This device has a maximum current rating of 24 A. It uses the solder termination method. This product is 22.86 mm long, 18 mm tall and 16 mm deep. Its wire is 12-24 AWG.

MASTER:
PCB terminal block - nominal current: 24 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - pitch: 7.62 mm - number of positions: 3 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB conne

Online Components:
Conn PC Terminal Block 3 POS 7.62mm Solder Thru-Hole 24A

Electro Sonic:
PCB terminal block - nominal current: 24 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² ...
