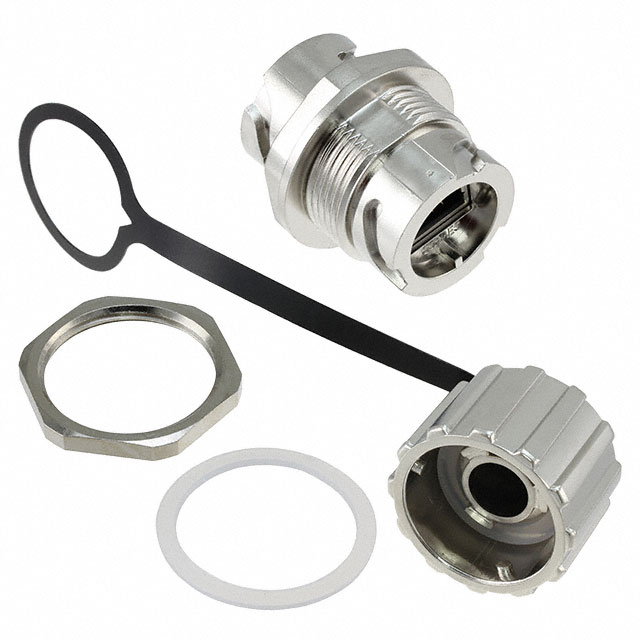

17-111274图片3

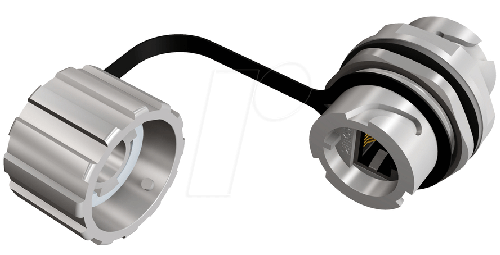

17-111274图片4
17-111274概述

Conn RJ-45 Coupler RCP 8POS ST Panel Mount 8 Terminal 1Port Cat 5e

模块 耦合器 连接器 插孔,8p8c(RJ45) 至 插孔,8p8c(RJ45) Cat5e 屏蔽


得捷:
COUPLER RJ45 IP67


欧时:
Receptacle Cover Assembly Kit


艾睿:
Never drop a call or phone connection using this rj-45 coupler 17-111274 telephone and telecom connector from Conec. This RCP connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a receptacle type gender. It has a maximum voltage rating of 100 VDC. This connector has a single port. This device has a maximum current rating of 1.2 A. 17-111274 is housed in black polyester. This product is 34.5 mm long and 37.8 mm. This part has an operating temperature of -40 to 85 °C.


17-111274中文资料参数规格
技术参数

触点数 8

极性 Male

绝缘电阻 500 MΩ

额定电流Max 1.2 A

工作温度Max 85 ℃

工作温度Min -40 ℃

额定电压Max 100 VDC

接触电阻Max 20 mΩ

封装参数

安装方式 PCB, Panel

物理参数

颜色 Black

触点材质 Phosphor Bronze

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买17-111274
型号: 17-111274
制造商: Conec
描述:Conn RJ-45 Coupler RCP 8POS ST Panel Mount 8 Terminal 1Port Cat 5e
