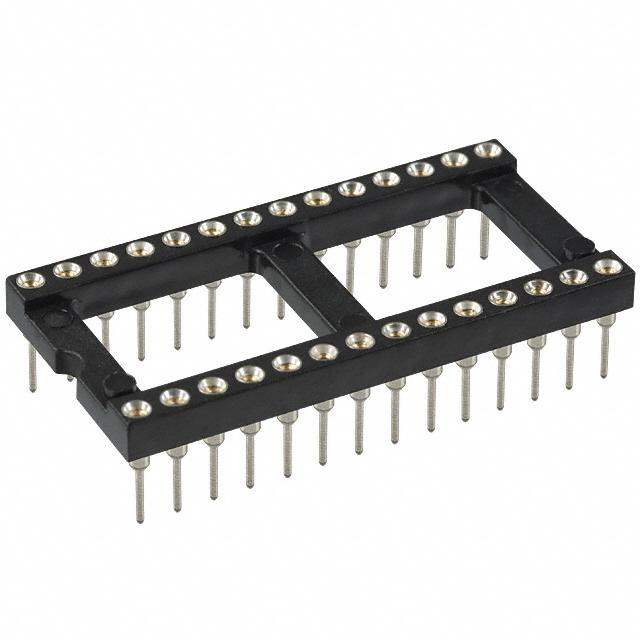

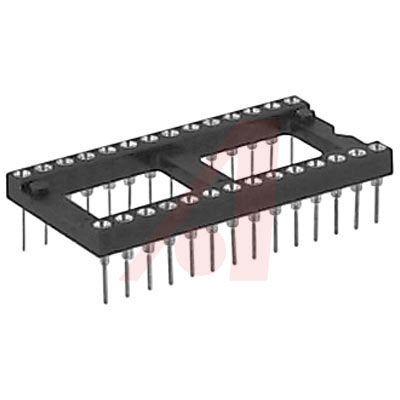

111-93-628-41-001000

Conn DIP Socket SKT 28POS 2.54mm Solder ST Thru-Hole Tube

Dual In Line Socket, Long Solder Tail for Multilayer PC-Boards, Open Frame

* DIP sockets with increased solder tail, allowing application on multilayer PCBs up to .139 " No Suggestions, 4-finger BeCu #30 clip

得捷:
CONN IC DIP SOCKET 28POS GOLD

艾睿:
Cleanly connect multiple wires together by using this dip socket 111-93-628-41-001000 connector socket from Mill-Max Mfg. Corp. This SKT connector&s;s 28 contacts that are made out of beryllium copper and plated with gold over nickel. It has a socket type gender. It has a straight body orientation. Its pitch is 2.54 mm. It has a maximum voltage rating of 150 VDC|100VAC. This is a 2-row connector. 111-93-628-41-001000 is housed in polychlorinated terphenyl. This device has a maximum current rating of 3 A. It is insulated with polychlorinated terphenyl. It uses the solder termination method. This connector socket has an operating temperature of -55 to 125 °C. This product is 35.5 mm long, 4.19 mm tall and 17.7 mm deep.

Allied Electronics:
Conn; IC Socket; DIP; 28; Open; 111 Series; Thru-Hole; 0.6"; 0.1" Pin Spcng; Straight; 3A

Chip1Stop:
Conn DIP Socket SKT 28 POS 2.54mm Solder ST Thru-Hole Tube
