132-0-0-501

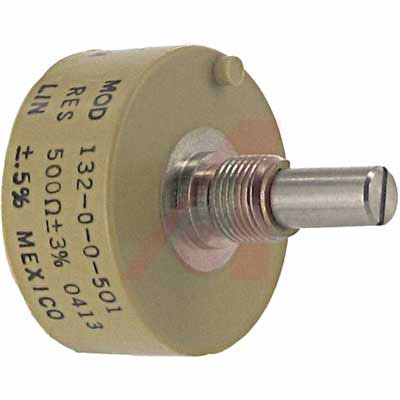

VISHAY  132-0-0-501  绕线电位器, 500Ω, 3%, 2.75W

Thermoplastic housing with nickel-plated brass bushing and 1⁄4" dia. stainless steel shaft. Solderable brass terminals. Wirewound element. Moisture resistant.

.

*Power Rating at 40°C:** 2.75 Watts. **Resistance Tolerance:** 3%. **Linearity Tolerance:** 0.5%. **Operating Temperature:** –55°C to +125°C. **Dimensions: **1.312"D × 0.625"L. **Rotational Life:** 500,000 Turns. **Weight:** 1.0 Oz.

Newark:
# VISHAY  132-0-0-501  Rotary Potentiometer, Wirewound, 500 ohm, 2.75 W, ± 3%, 132 Series, 1 Turns, Linear
