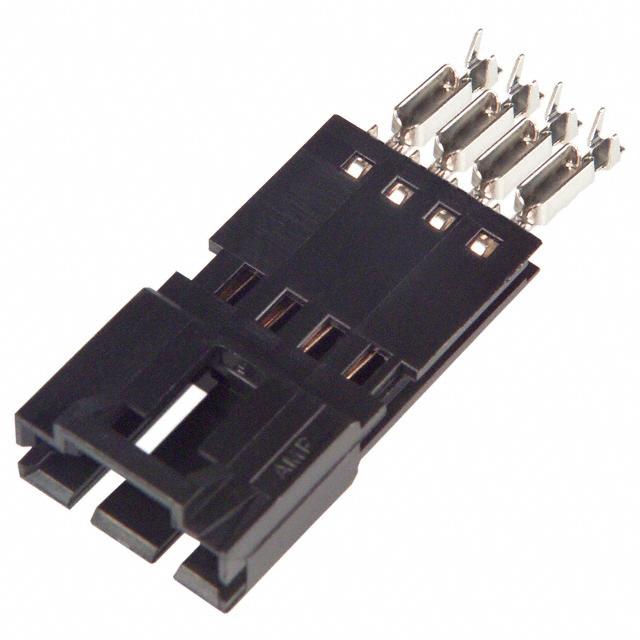

Conn IDC Connector PIN 4POS 2.54mm IDT ST Cable Mount Tube
4X4 MTE SHRD PIN SR POL .100CL
Product Highlights
Pin Assemblies
Wire Termination Type = Crimp, Insulation Displacement Crimp IDC
Number of Positions = 4
Number of Rows = Single
Terminate To Wire
得捷:
CONN PLUG 4POS IDC 22-26AWG GOLD
安富利:
Conn IDC Connector PIN 4 POS 2.54mm IDT ST Cable Mount Strip
Chip1Stop:
Conn IDC Connector PIN 4 POS 2.54mm IDT ST Cable Mount Tube
Verical:
Conn Wire to Board M 4 POS 2.54mm IDT ST Cable Mount Tube
Newark:
# AMP - TE CONNECTIVITY 103946-3 4X4 MTE SHRD PIN SR POL .100CL New
MASTER:
SHROUDED PIN ASSY, AMPMODU MTE, SINGLE ROW, .100 CL, POLARIZED, W/ LATCH WINDOWS, FOR NO 22-NO 26 AWG WIRE SIZE, STRIP FORM
Powell:
.100 AMPMODU Headers, Housings & Contacts
Online Components:
4X4 MTE SHRD PIN SR POL .100CL
Electro Sonic:
4X4 MTE SHRD PIN SR POL .100CL
触点数 4
极性 Male
线规 22AWG ~ 26AWG
触点电镀 Tin Lead
绝缘电阻 5.00 GΩ
排数 1
易燃性等级 UL 94 V-0
针脚数 4
安装角度 180 °
触点额定电流 3.00 A
额定电流Max 3A/触头
接触电阻Max 15 mΩ
引脚间距 2.54 mm
长度 12.6 mm
高度 6.6 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536698000
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
103946-3 TE Connectivity 泰科 | 当前型号 | 当前型号 |
5-103946-3 泰科 | 功能相似 | 103946-3和5-103946-3的区别 |
