CONN CONT RCPT 26-22AWG PRE-TIN
POWER D/LOCK REC CONT. H/P L/P
Product Highlights
Contact
Receptacle
Wire Range = 0.12-0.40² [26-22] mm [AWG]
Insulation Diameter = 1.30-2.00 [.051-.079] mm [in]
High Applied Pressure
得捷:
CONN SOCKET 22-26AWG CRIMP TIN
立创商城:
179592-2
艾睿:

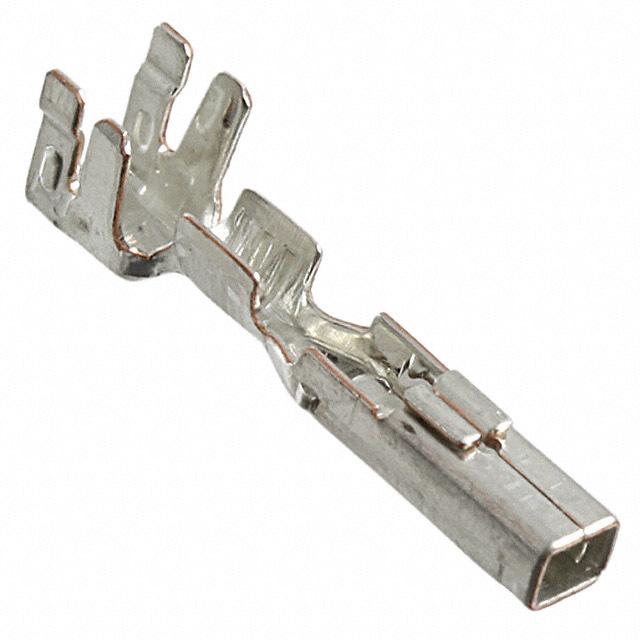

Prevent premature failure by installing this 179592-2 connector contact from TE Connectivity. It has a socket type gender. It has a straight body orientation. This device has a maximum current rating of 10 A. This has a Connector Power connector. It uses the crimp termination method. This connector contact has a minimum operating temperature of -30 °C and a maximum of 105 °C. This product is 14.2 mm long, 3.7 mm tall and 3.5 mm deep. Its wire is 22-26 AWG.
安富利:
Contact SKT Crimp ST Cable Mount Loose Piece
Chip1Stop:
Contact SKT Crimp ST Cable Mount Loose Piece
Verical:
Contact SKT Crimp ST Cable Mount 22-26AWG Bag
MASTER:
Contact SKT Crimp ST Cable Mount 22-26AWG Bag
Powell:
Power Double-Lock Connectors
Online Components:
POWER D/LOCK REC CONT. H/P L/P
线规 22AWG ~ 26AWG
触点电镀 Tin
工作电压 300 VAC
易燃性等级 UL 94 V-0
额定电流Max 10 A
工作温度Max 105 ℃
工作温度Min -30 ℃
额定电压Max 300 VAC
封装 -
长度 14.2 mm
宽度 3.5 mm
高度 3.7 mm
封装 -
触点材质 Copper Alloy
外壳材质 Nylon
产品生命周期 Active
包装方式 Bag
制造应用 Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8538908040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
179592-2 TE Connectivity 泰科 | 当前型号 | 当前型号 |
177914-2 泰科 | 完全替代 | 179592-2和177914-2的区别 |
