170-037-173L000

NORCOMP  170-037-173L000  连接器外壳, D-Sub, 压接, 170系列, D Sub, DC, 插头, 37 路, 钢主体

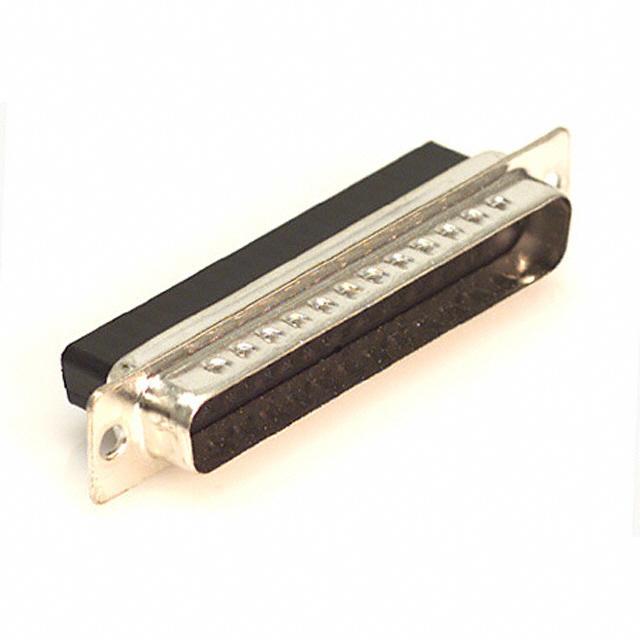

The 170 series Crimp and Poke D-Sub Connector is available in 5 industry sizes/positions 9, 15, 25, 37 and 50. It is a low cost commercial version of military standard. It allows for easy loading of only the positions required using crimp and snap-in contacts. The nickel-plated connector shells have indents to provide grounding and additional retention.

.

Nickel or tin shells

.

Nylon insulator has a minimum contact retention of 10lb

.

5A Contact current rating

.

UL94V-0 Flammability

Contacts must be ordered separately.
