1591XXASFLBK概述

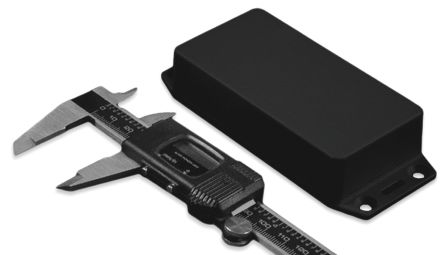

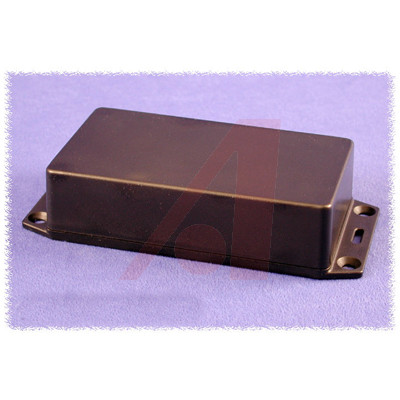

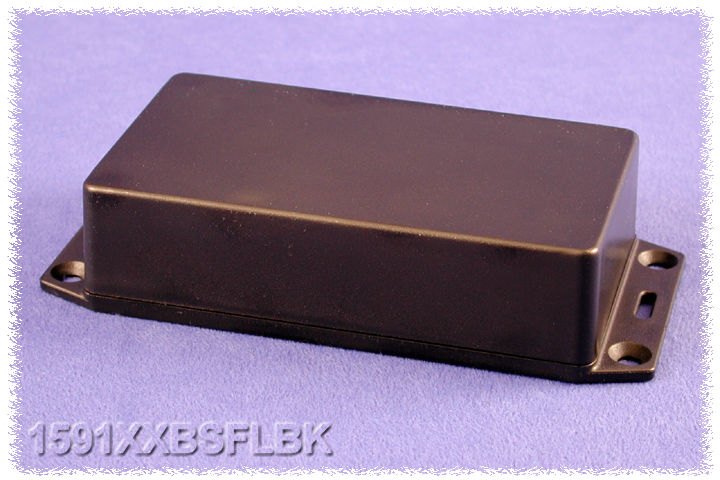

HAMMOND  1591XXASFLBK  机箱, IP54, 法兰盖, 多用途, 100 mm, 51 mm, 25 mm, 塑料, 黑色

**Hammond 1591 Multi-purpose Plastic Enclosures, Flanged**

The Hammond 1591 series is a multi-purpose plastic enclosure ideally suited for mounting printed circuit boards PCBs horizontally. The internal sides of the enclosure are smooth for easy connector installlation. Each enclosure has 2 PC board standoffs molded into the interior and a lap joint construction which provides IP54 protection against the access of dust and splashing water. The Hammond 1591 series is perfect for applications where repetitive assembly and disassembly are required. The flanged lid of the enclosure is ideal for wall or shelf mounting and also enclosure security.

1591XXASFLBK中文资料参数规格
技术参数

触点数 44

易燃性等级 UL 94 HB

额定电流Max 3.2A/触头

封装参数

安装方式 Through Hole

外形尺寸

长度 3.9 in

宽度 51 mm

高度 0.8 in

厚度 2.01 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Phosphor Bronze

材质 Plastic

重量 40.82 g

外壳材质 Plastic

其他

产品生命周期 Active

制造应用 Industrial, 工业

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

数据手册

在线购买1591XXASFLBK
型号: 1591XXASFLBK
制造商: Hammond Manufacturing
描述:HAMMOND  1591XXASFLBK  机箱, IP54, 法兰盖, 多用途, 100 mm, 51 mm, 25 mm, 塑料, 黑色
